Premier 8 is one of the most innovative SRW products the industry has seen in its 30 year history. Its unique and patented 1 sq. ft. block design is changing the industry. Premier’s 54 lb. unit weight reduces installer fatigue and beats all other block systems for strength, performance, freight efficiencies and ease of construction.

Applications

Retaining Wall

Find an Authorized Dealer in your area

Features and specifications:

Designed with Max Core™ Technology for connection strength and resistance to shear from continuous stone columns
Easy to handle for increased efficiencies in the field
No cumbersome/expensive pins or clips
Capable of tight radius turns
Allows for up to 864 sq. ft. per truckload

Dimensions: 18″ W x 12″ D x 8″ H
Weight: 54 lbs. (24.5 kg)
Area: 1.0 sq. ft.
Setback: 1.0″ (7°)

Manufactured in accordance with ASTM C1372. Unit availability, color and
specifications vary by manufacturer. Contact your nearest Rockwood manufacturer
or dealer for more information.

Pound for pound, Premier is unlike any other SRW block.

Premier 8’s revolutionary block design makes it the most efficient 1 sq. ft. SRW block ever. At just 54 lbs., it beats all other block systems for freight efficiencies and ease of construction.

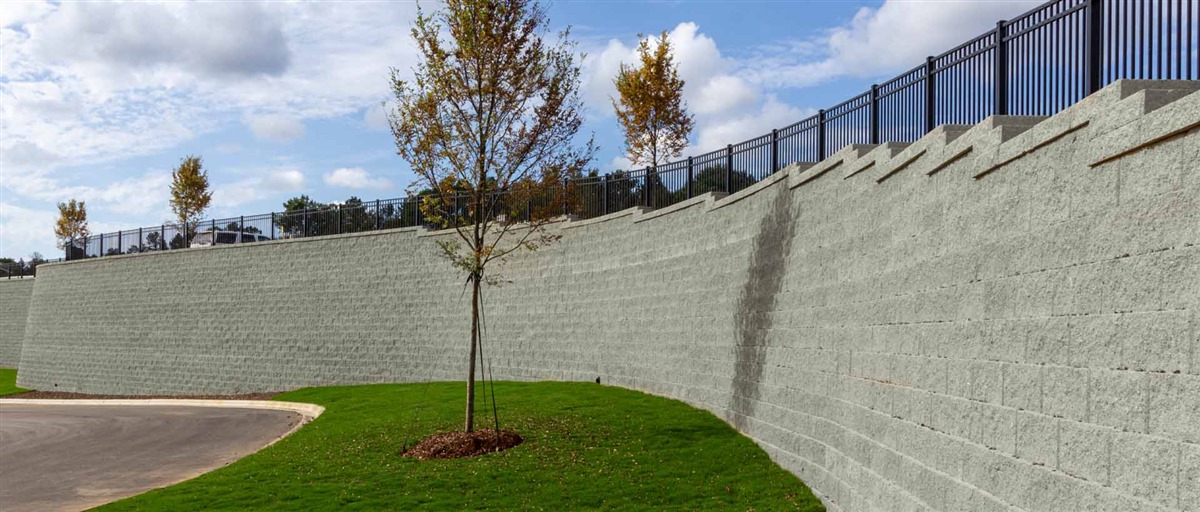

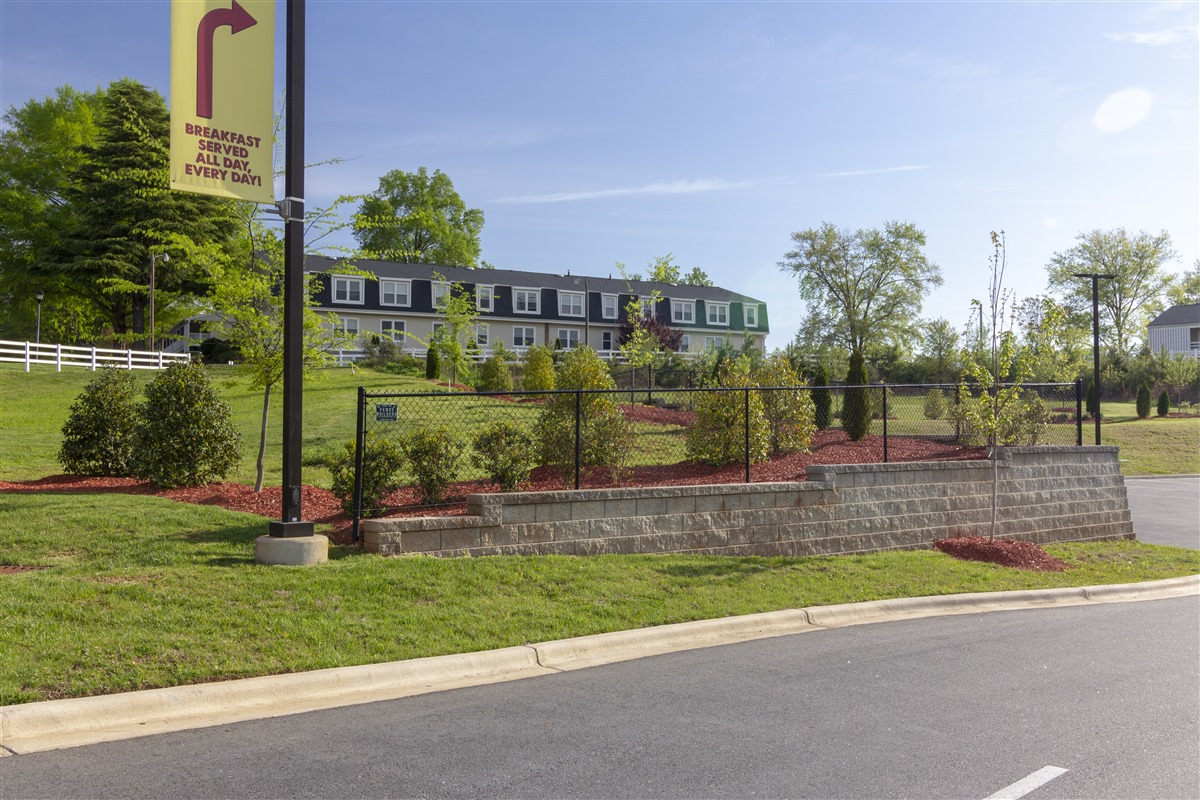

Gallery

Our Technology

Shear Resistance

Retaining wall units are engineered with open cores in the center of the block that are filled with drainage aggregate during installation. This design forms continuous stone columns the entire height of the wall, significantly increasing block to block shear resistance and enhancing the wall’s stability during and after construction.

Max Core Technology

Engineered with Max Core ™ Technology, this retaining wall block delivers unmatched strength and performance while weighing nearly half as much as traditional segmental retaining wall units. Its advanced design meets and exceeds industry standards. Max Core ™ Technology makes blocks easier to handle without compromising structural integrity – a smarter, more efficient solution on the jobsite.

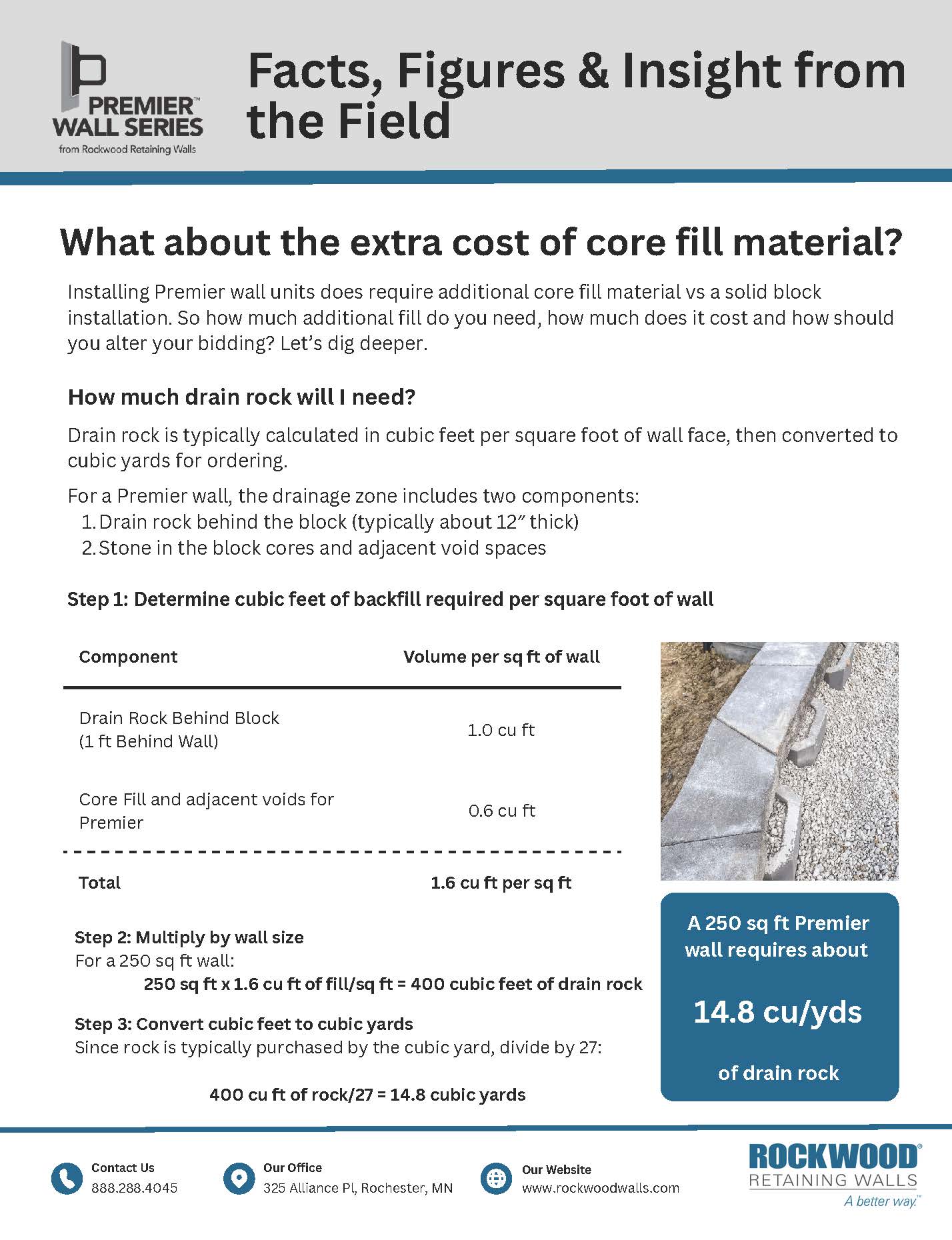

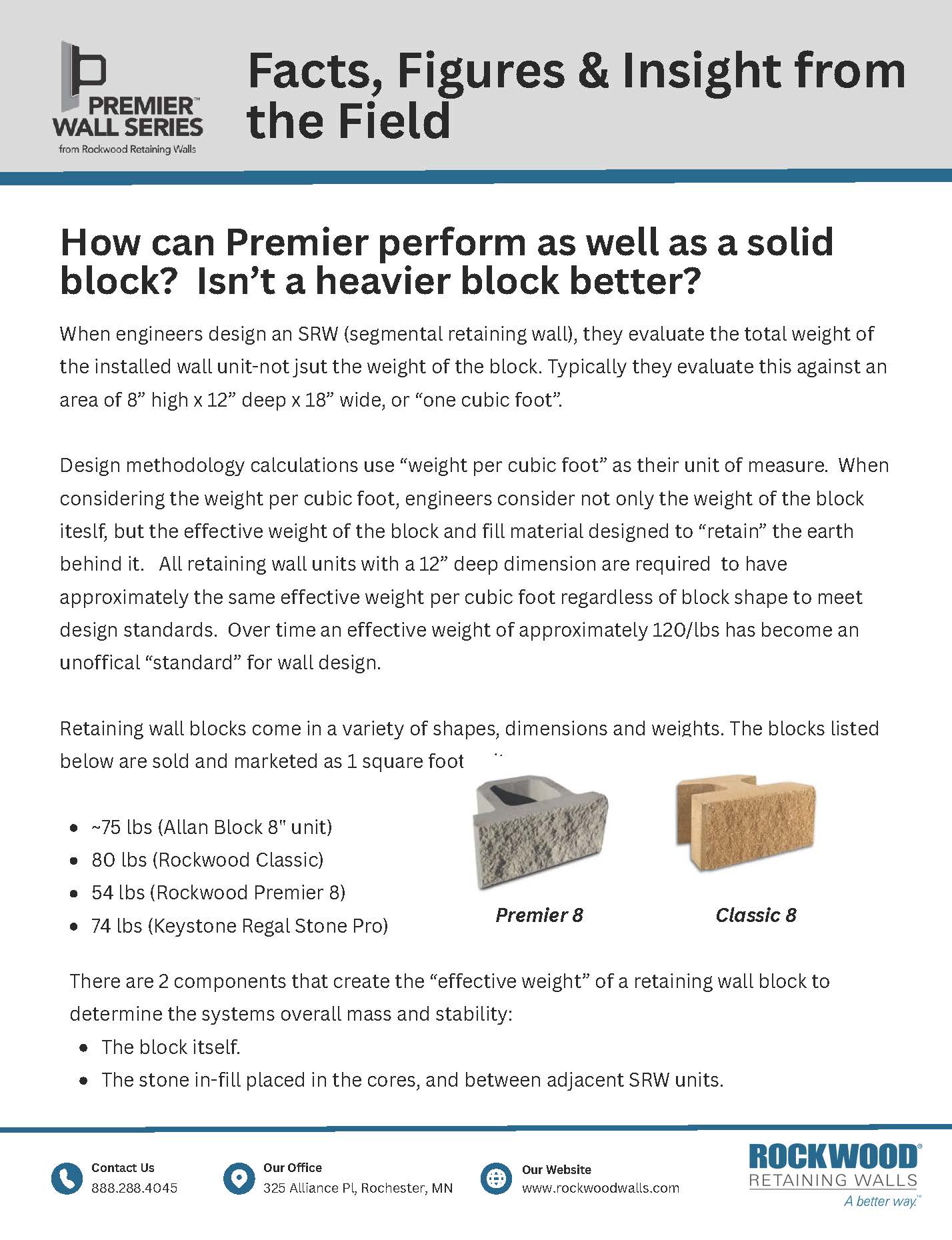

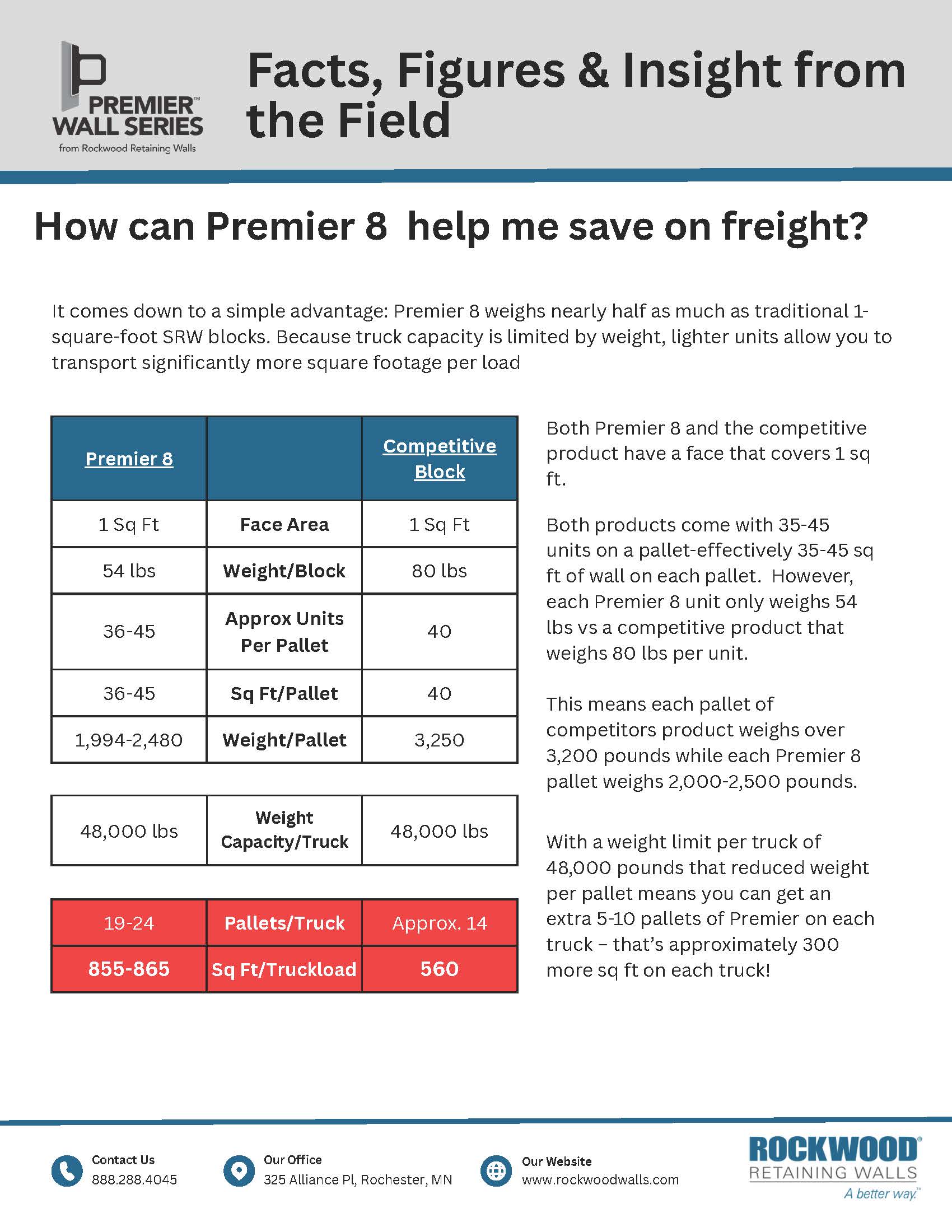

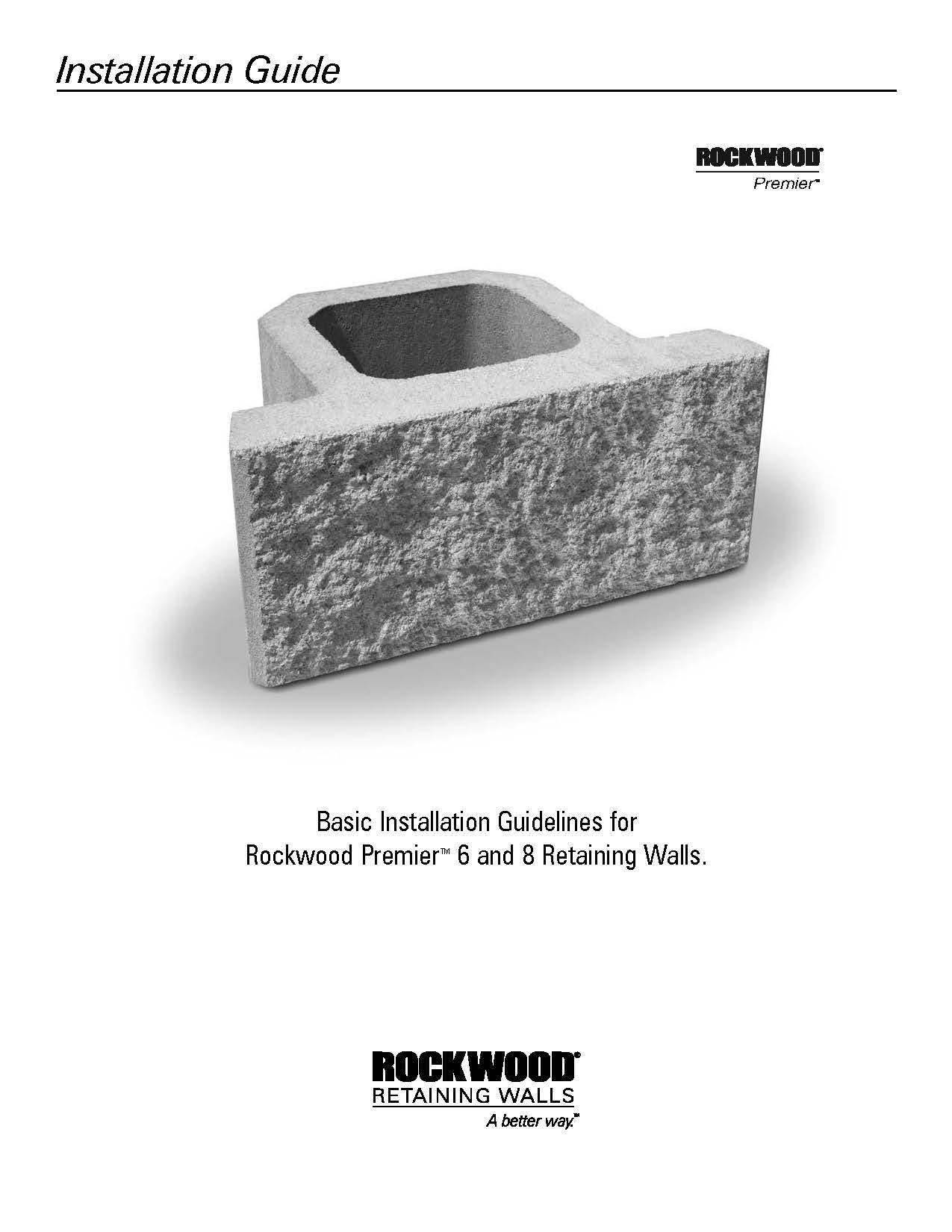

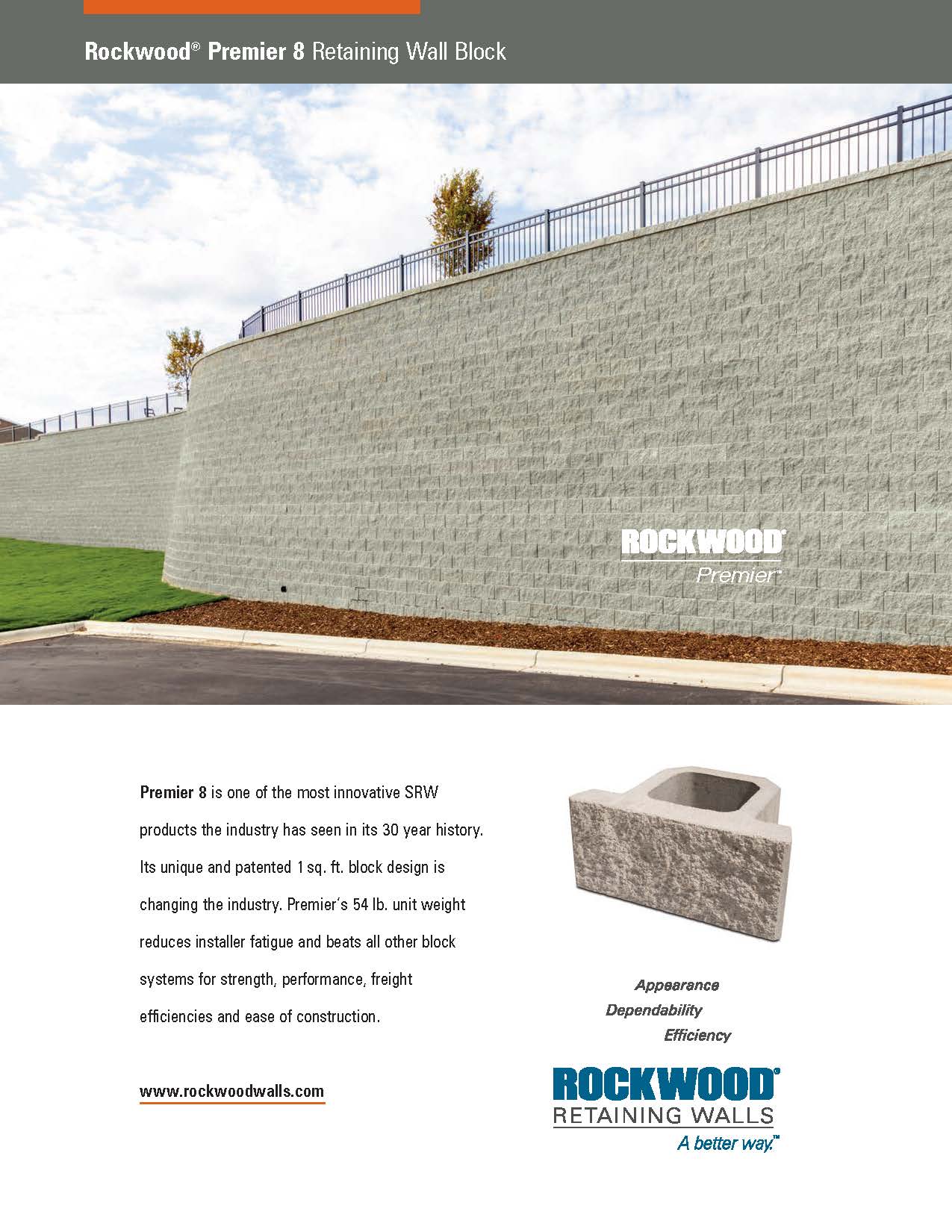

Technical Resources

Blocks	Dimensions	Face Area	Weight	Units/Layer	Layers	Units/Pallet	Pallet Weight
Premier 8 (Rochester)	18 x 12 x 8″ H	1 sq. ft.	57 lbs.	9	4	36 (36 sq. ft.)	2,102 lbs.
Premier 8 (Beaver Dam)	18 x 12 x 8″ H	1 sq. ft.	57 lbs.	9	5	45 (45 sq. ft.)	2,615 lbs.
8″ Universal Corner	18 x 9 x 8″ H	1 sq. ft.	103.4 lbs.	5	4	20 (20 sq. ft.)	2,118 lbs.
