Rockwood Premier™ 6 Wall
Rockwood Premier 6 combines the innovative design advantages of the Premier Wall Series with a 6-inch profile ideal for residential and light commercial retaining walls under 8 feet in height. Engineered with Max Core™ technology, it delivers exceptional shear resistance and superior grid connection strength, all in a lightweight, easy-to-handle 44 lb. unit—making it a high-performance solution without sacrificing installation efficiency.
Click Here to View the Premier 6 Photo Gallery
Applications
- Retaining Wall
Find an Authorized Dealer in your area
Features and specifications:
- Designed with Max Core™ Technology for connection strength and resistance to shear from continuous stone columns
- No cumbersome/expensive pins or clips
- Lightweight for ease of handling, reducing fatigue
- Increased freight efficiencies
- 30″ max. gravity wall height, suitable for walls up to 10 ft. in height with proper engineering
Dimensions: 18″ W x 12” D x 6″ H
Weight: 44 lbs.
Area: 0.75 sq. ft.
Setback: 0.50″ (4.7°)
Manufactured in accordance with ASTM C1372. Unit availability, color and specifications vary by manufacturer. Contact your nearest Rockwood manufacturer or dealer for more information.
Pound for pound, Premier is unlike any other SRW block.
Premier 6’s revolutionary block design makes it the most efficient 1 sq. ft. SRW block ever. At just 44 lbs., it beats all other block systems for freight efficiencies and ease of construction.

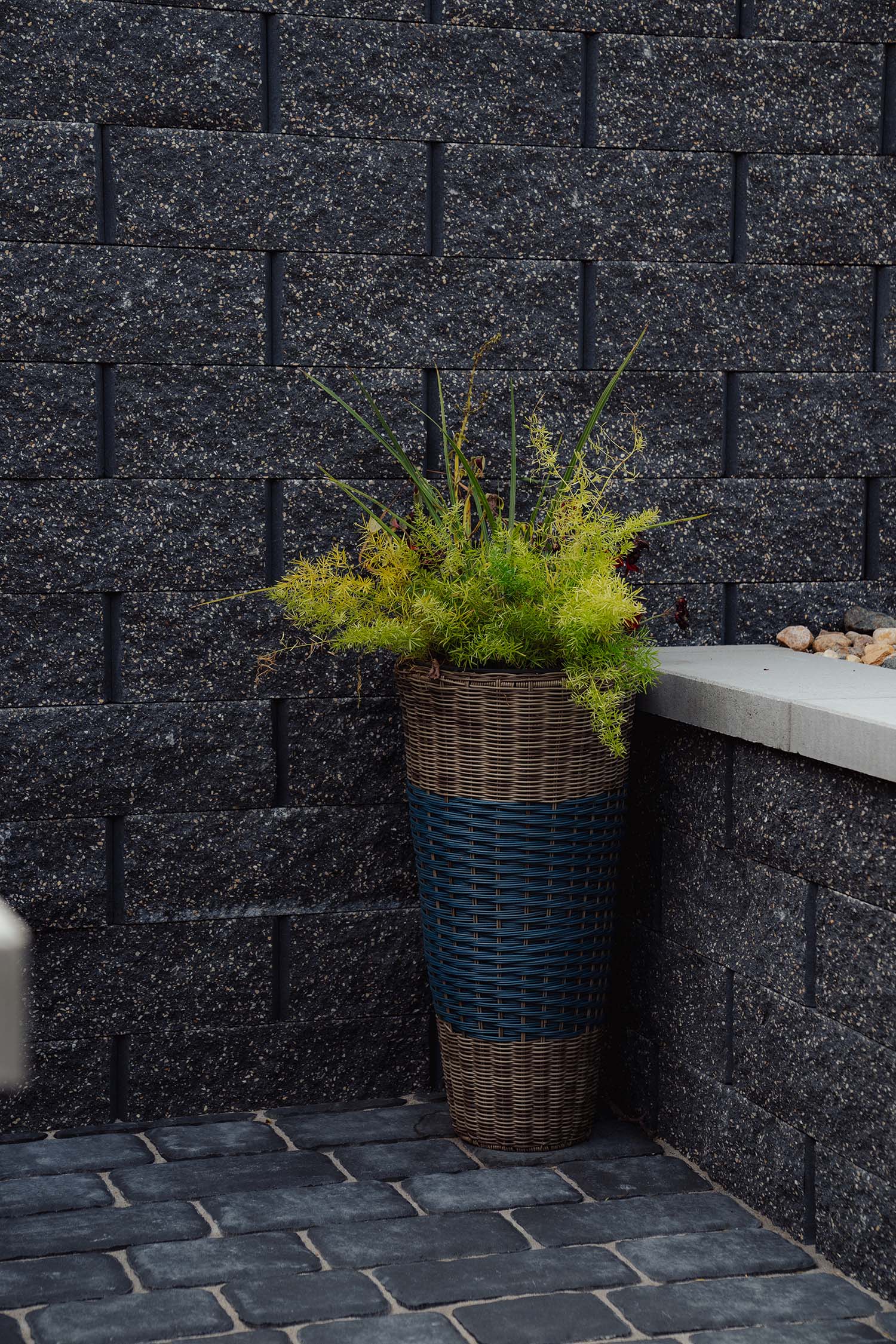

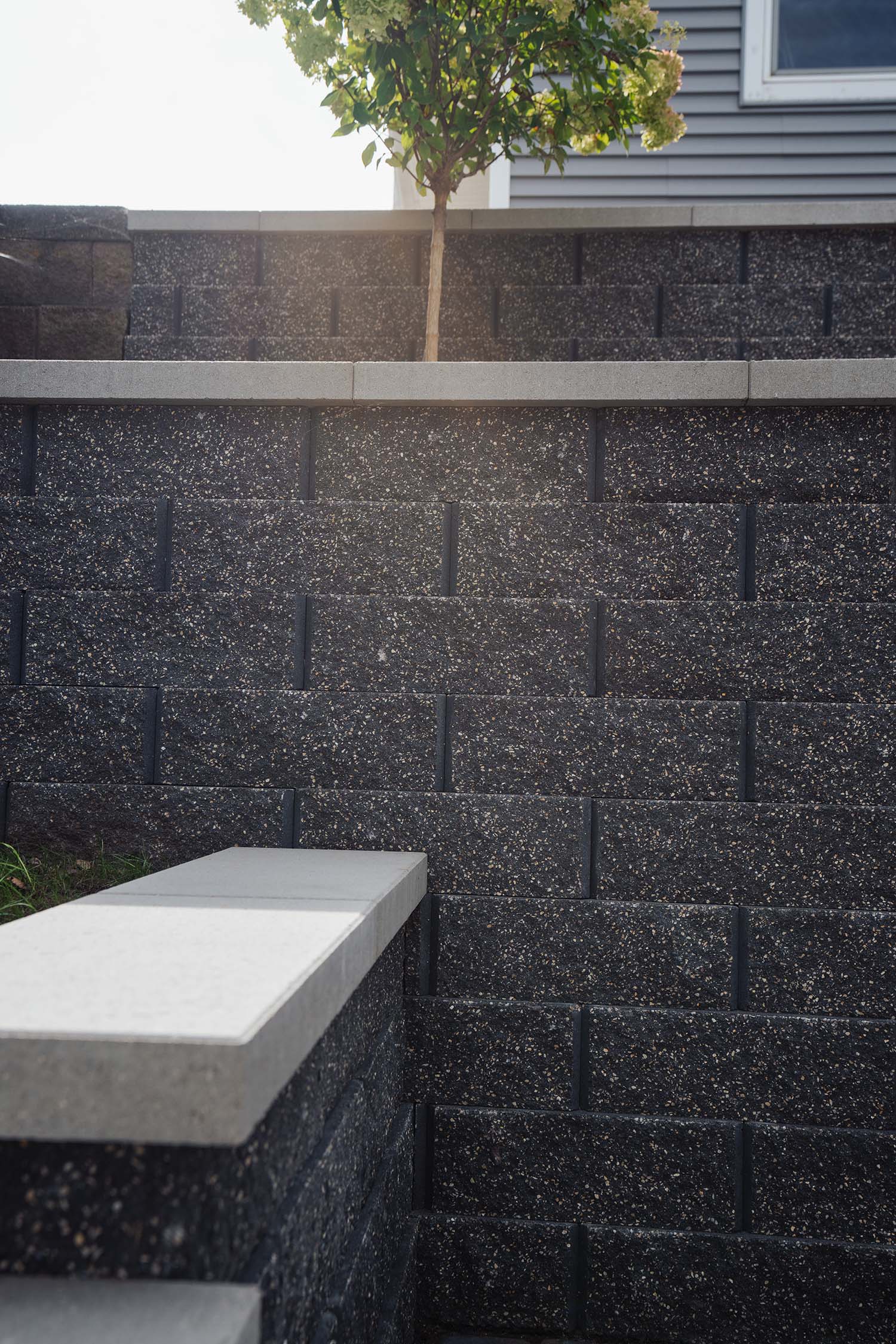

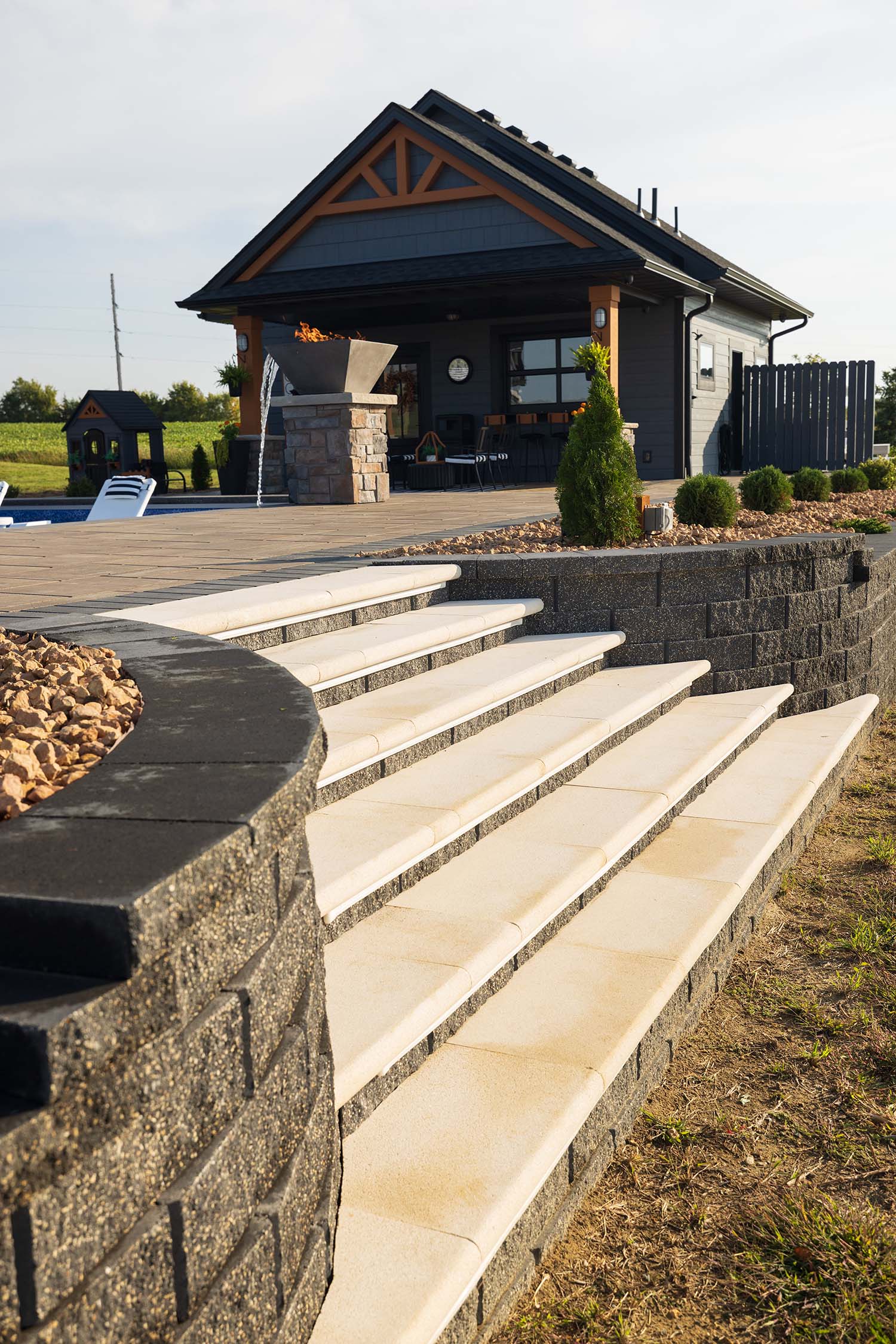

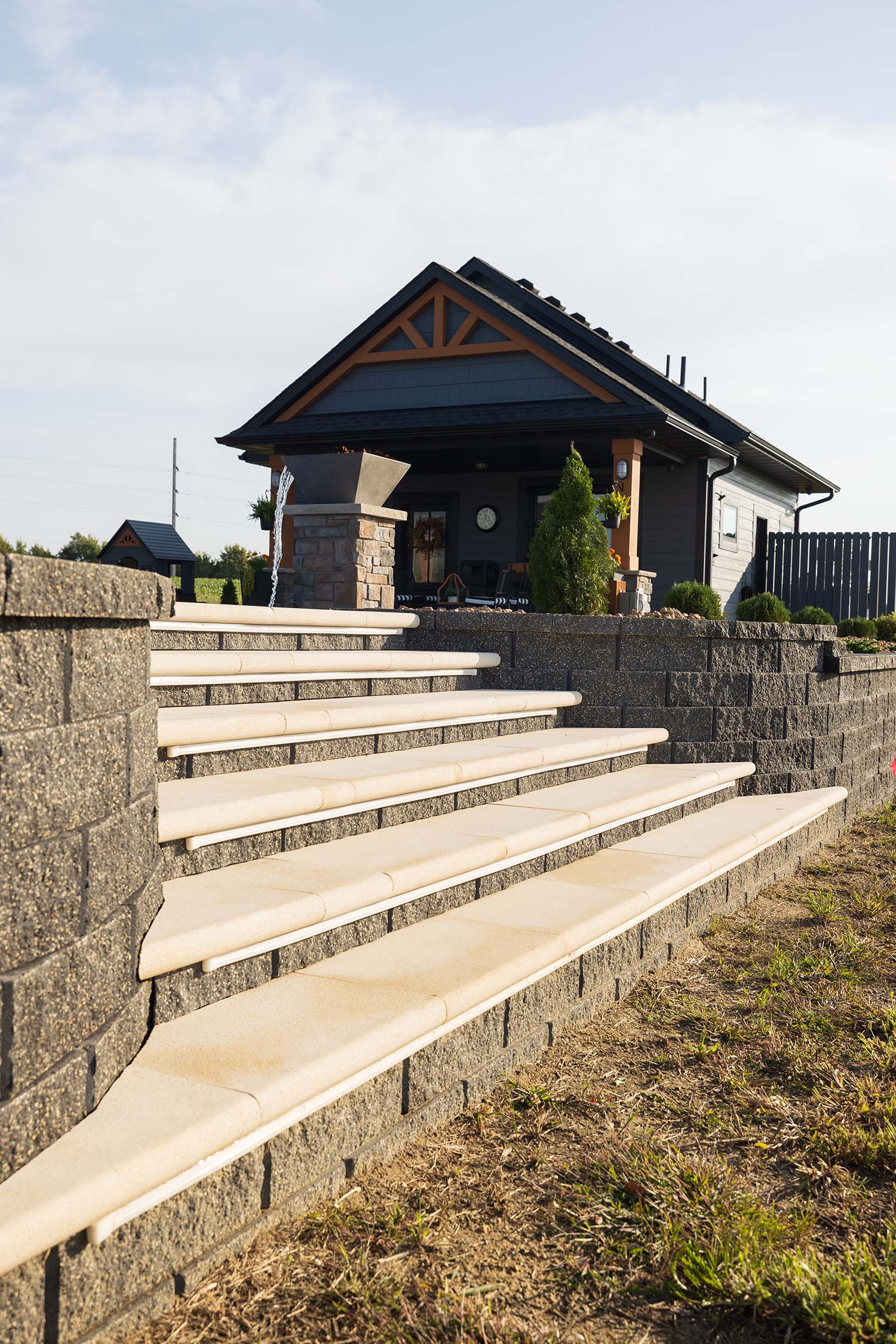

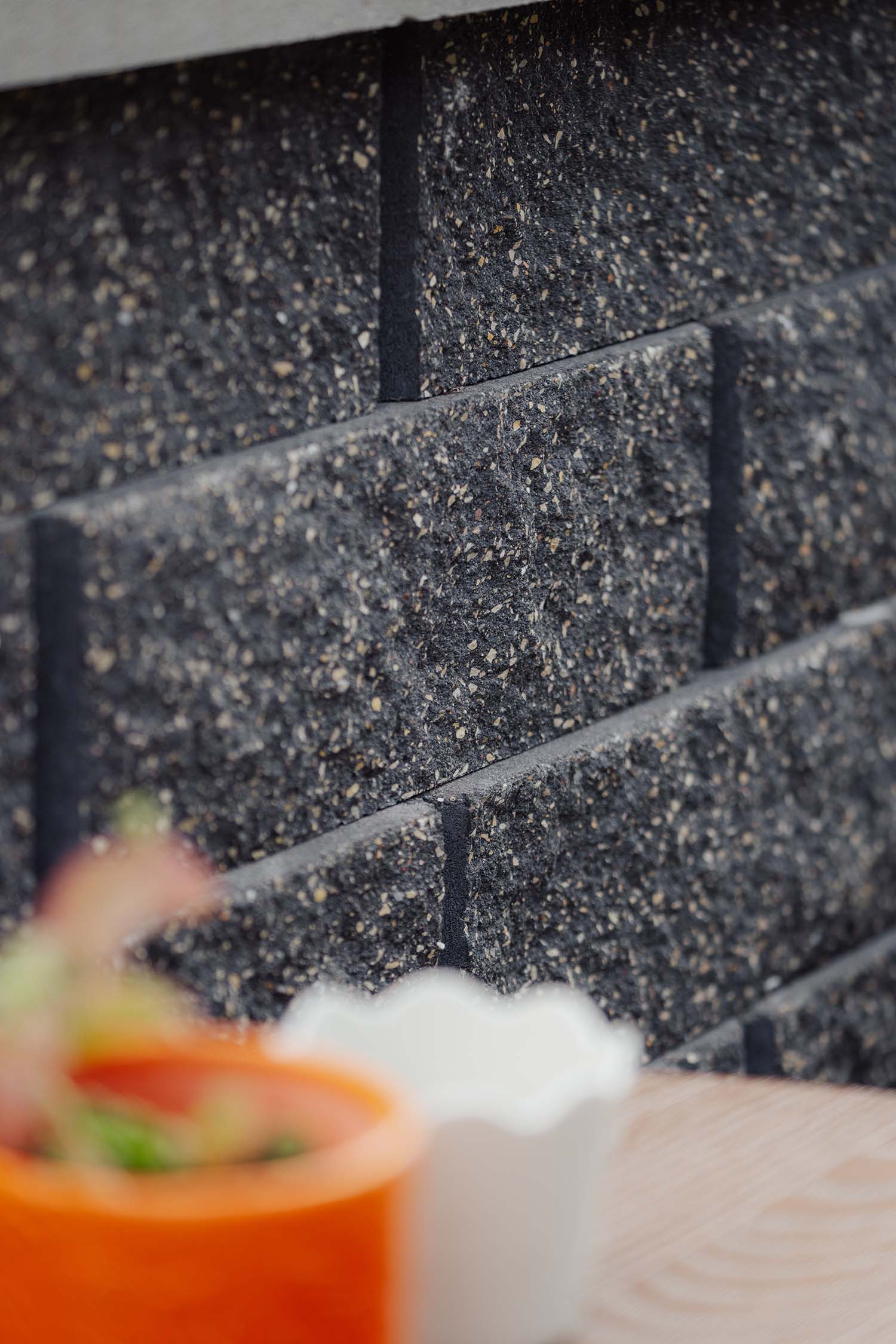

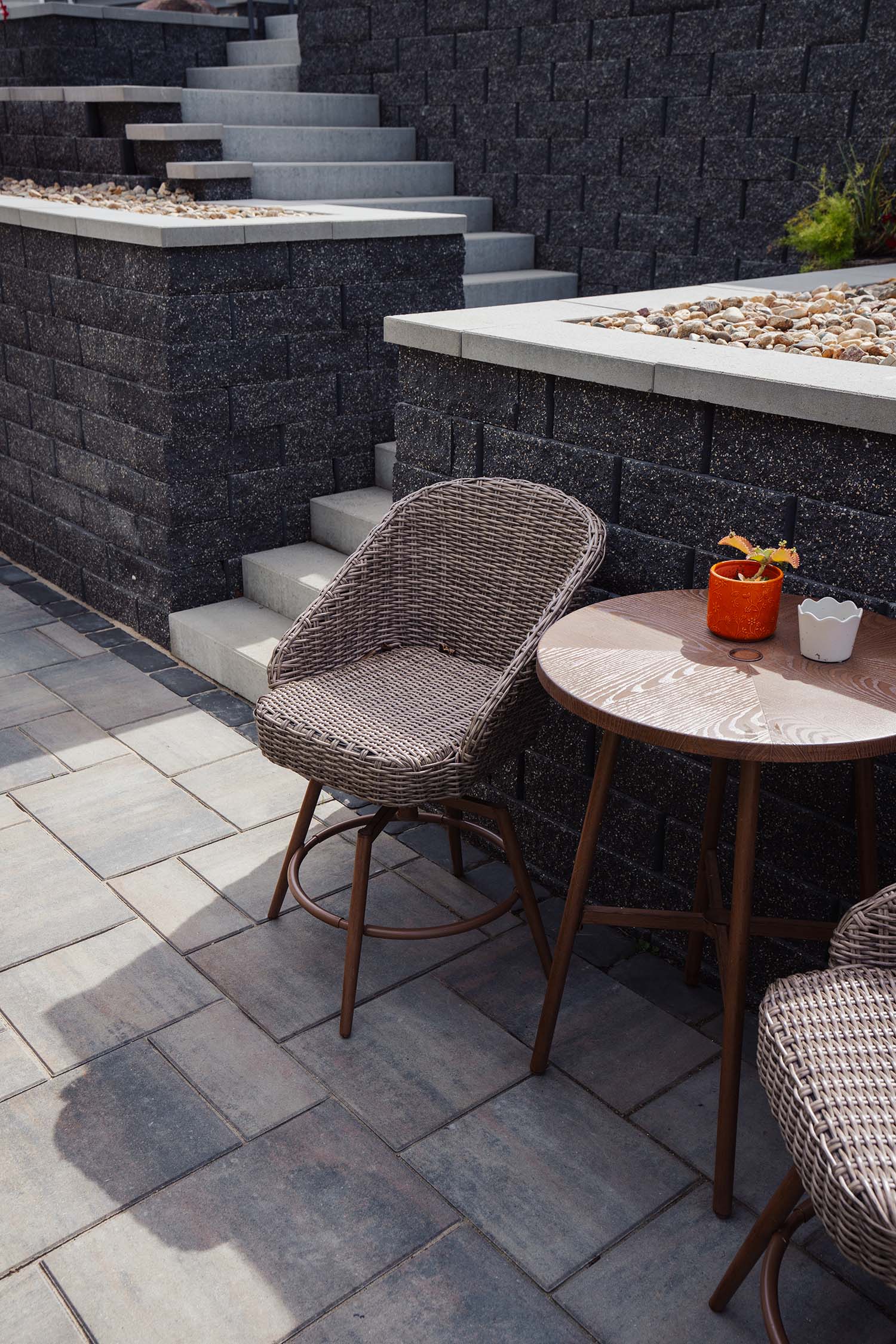

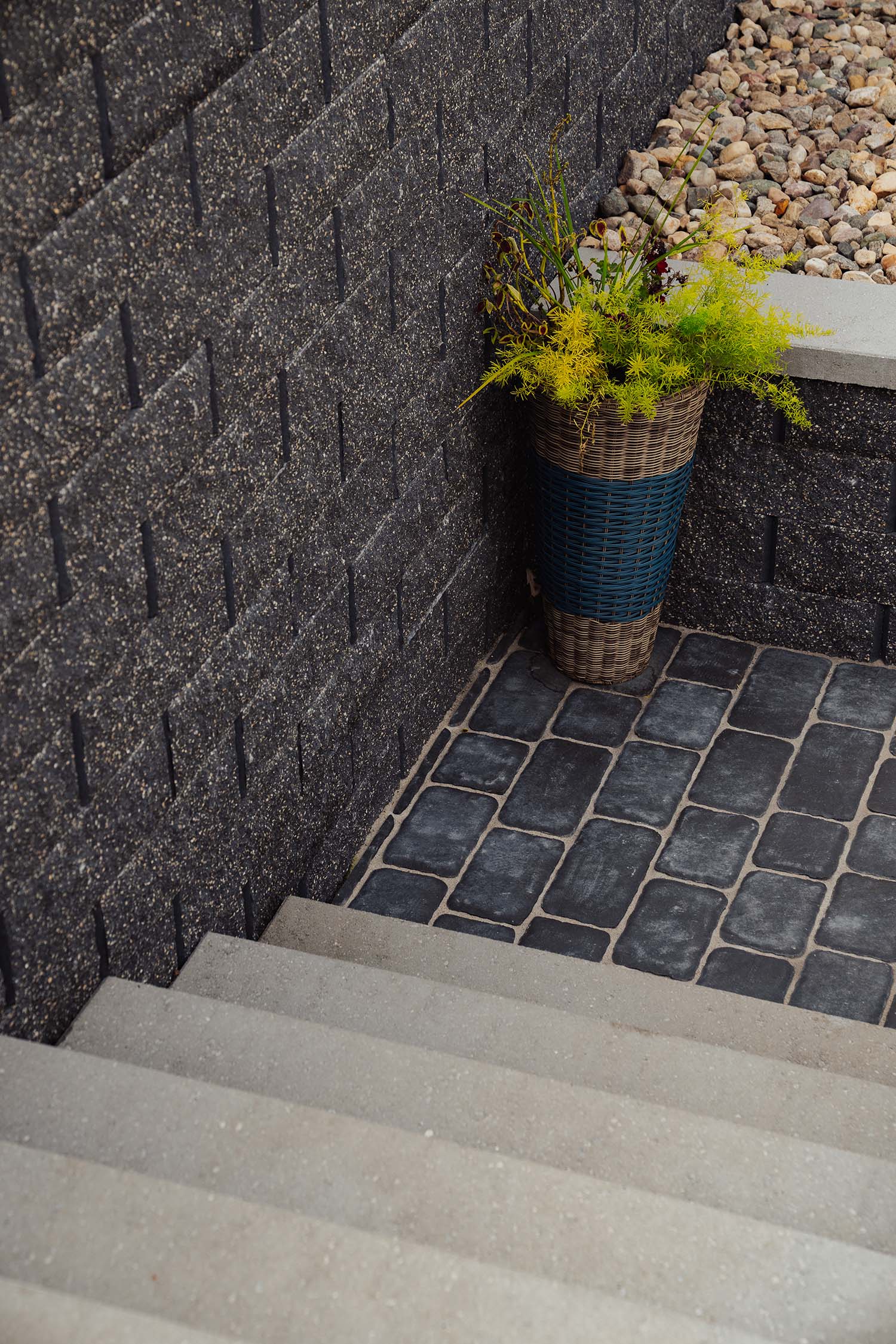

Gallery
Our Technology
Shear Resistance
Retaining wall units are engineered with open cores in the center of the block that are filled with drainage aggregate during installation. This design forms continuous stone columns the entire height of the wall, significantly increasing block to block shear resistance and enhancing the wall’s stability during and after construction.
Max Core Technology
Engineered with Max Core ™ Technology, this retaining wall block delivers unmatched strength and performance while weighing nearly half as much as traditional segmental retaining wall units. Its advanced design meets and exceeds industry standards. Max Core ™ Technology makes blocks easier to handle without compromising structural integrity – a smarter, more efficient solution on the jobsite.
Technical Resources
Premier 6
| Size/Name | Dimensions | Area/Unit | Unit Weight |
|---|---|---|---|
| Straight Face | 18 x 12 x 6″ H | 0.74 sq. ft. | 43.5 lbs. |
| 6″ Universal Corner | 18 x 9 x 6″ H | 0.66 sq. ft. | 76.6 lbs. |
SRW Best Practices

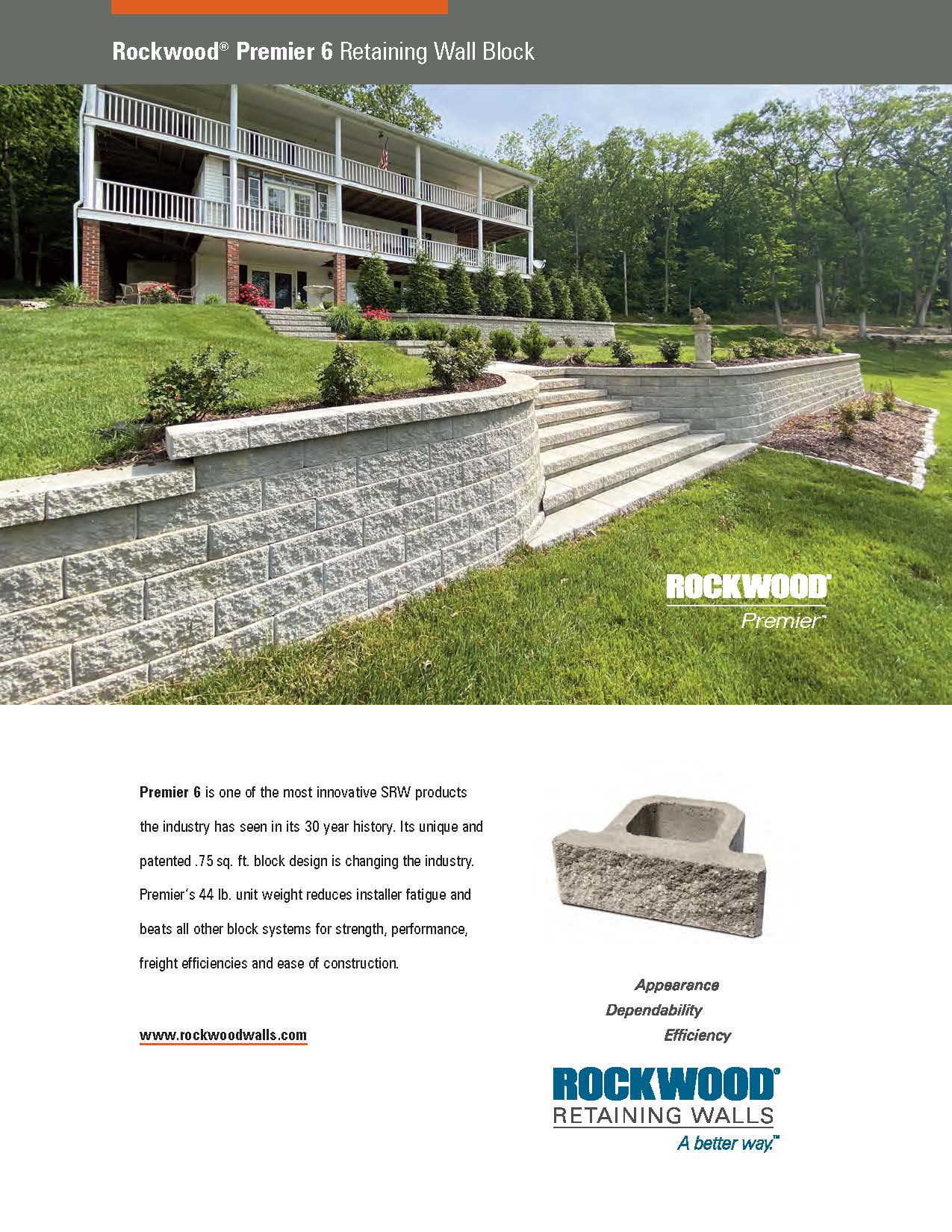

Premier 6 Cut Sheet
