Classic 6™ Wall
The lower profile of Classic® 6 provides a longer, smoother appearance while maintaining all the special features of the Rockwood® Classic family of products. Classic 6 is as flexible as it is versatile. Capable of sharp radius turns, variable setbacks, and endless design possibilities, Classic 6 is the perfect block for any retaining wall project.
Applications
- Retaining Wall
Find an Authorized Dealer in your area
Features and specifications:
- Easy to handle
- Anchor bar connection design, no cumbersome/expensive pins or clips
- Straight or Bevel split face option
- Can be built to incredible heights, capable of tight radius turns
Dimensions: 6″ H x 18″ W x 12″ D
Weight: 60 lbs. (27 kg)
Area: 0.7 sq. ft.
Setback: Standard; 3/4″ (9.4°) adjustable to near vertical
The Advantages of the Rockwood Classic® System…
It’s Fast…
Located on the underside of each Classic® block, the 4″ x 2″ Anchor Bar creates an automatic setback with the highest shear resistance in the industry. Plus, Classic’s fewer pieces, pinless design, and lower weight per square foot reduces construction time, labor costs, and freight charges.
It’s Simple…
“One Unit” construction is a vital element of Classic’s superior design. 90° corners and half blocks are made simply by removing a portion of the block. No special blocks are required; no special inventories are needed; no shortages occur on the jobsite!
It’s Strong…
Upon assembly, Classic blocks automatically create 4″ x 5″ vertical “stone columns”. When layered with grid, the gravel filled “stone columns” provide a multi-point interlock, for a more uniform block-to-grid connection.
It’s Versatile…
Variable setbacks, sharp radius turns, “One Unit” construction, and complete interchangeability are all features of Rockwood’s Classic System. The ability to mix various sizes and colors within a wall enhances your imagination without sacrificing structural integrity. Plus, the Anchor Bar allows you to build at any setback you desire – from 0° to 14°, providing the only “true” vertical setback in the industry.
Manufactured in accordance with ASTM C1372. Unit availability, color and specifications vary by manufacturer. Contact your nearest Rockwood manufacturer or dealer for more information. Nominal dimensions shown.
Gallery
Our Technology
Shear Resistance
Retaining wall units are engineered with open cores in the center of the block that are filled with drainage aggregate during installation. This design forms continuous stone columns the entire height of the wall, significantly increasing block to block shear resistance and enhancing the wall’s stability during and after construction.
Technical Resources
| Size/Name | Dimensions | Area/Unit | Weight | Units/Layer | Layers/Pallet | Units/Pallet | Area/Pallet | Weight/Pallet |
|---|---|---|---|---|---|---|---|---|
| Straight Face | 18 x 12 x 6″ H | 0.75 sq. ft. | 64 lbs. | 12 | 3 | 36 | 27 sq. ft. | 2,354 lbs. |
| Straight Base | 18 x 12 x 6″ H | 0.75 sq. ft. | 64 lbs. | 12 | 3 | 36 | 27 sq. ft. | 2,354 lbs. |
| Beveled Face | 18 x 12 x 6″ H | 0.75 sq. ft. | 60 lbs. | 12 | 3 | 36 | 27 sq. ft. | 2,210 lbs. |
| Half Block | 9 x 12 x 6″ H | 0.38 sq. ft. | 30 lbs. | 12 | 1 | 12 | 4.56 sq. ft. | 410 lbs. |
| 6″ Universal Corner | 18 x 9 x 6″ H | 0.66 sq. ft. | 76.6 lbs. | 10 | 2 | 20 | 13.2 sq. ft. | 1,582 lbs. |
Available by layer or pallet. Limited quantities of Classic 6 in Monterey and Brown, call for availability. To estimate number of units, divide total sq. ft. by 0.75.
SRW Best Practices
Classic Installation Manual
Classic Installation Manual (Spanish)

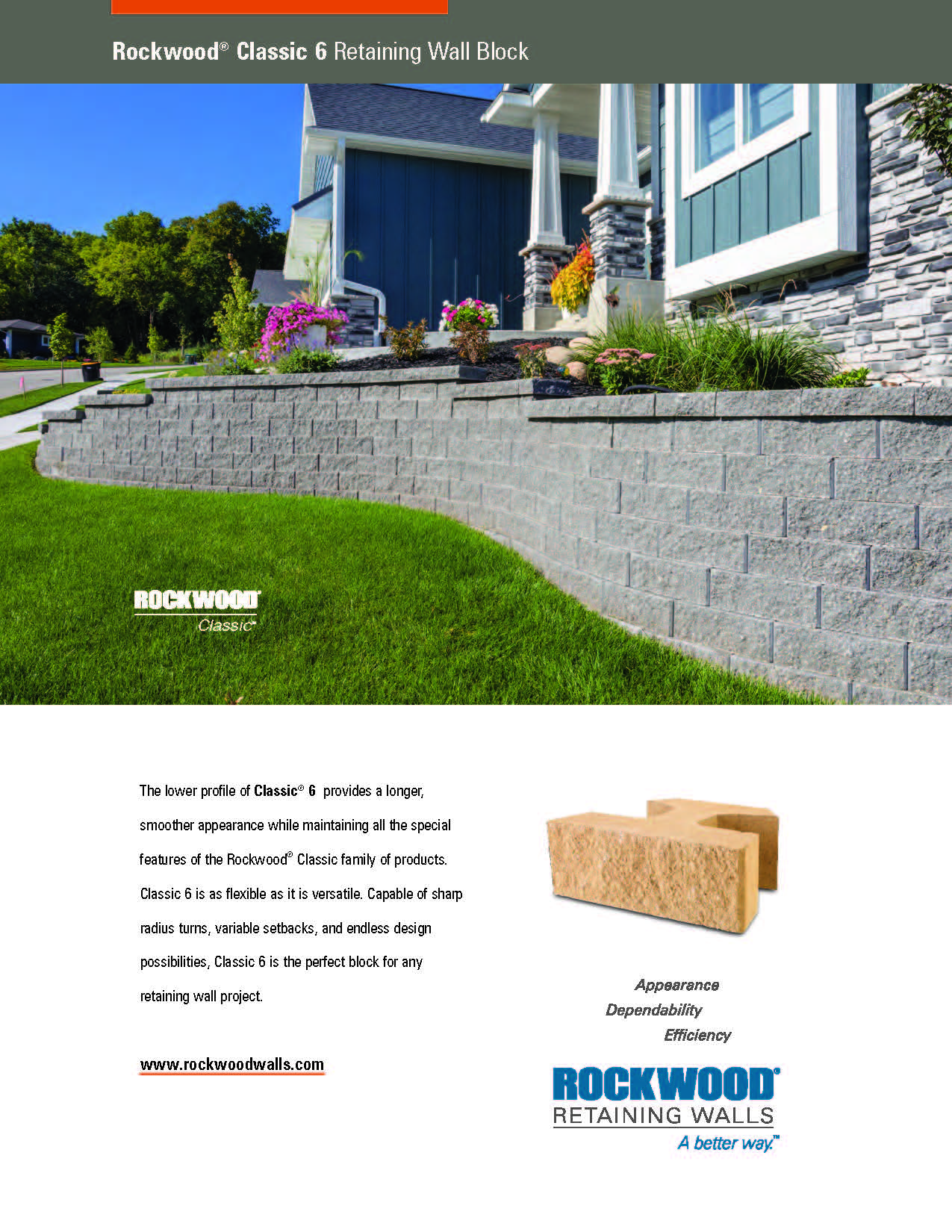

Classic 6 Brochure
