Vintage 6™ Wall
VintageTM 6 is a three-piece, split face, tumbled retaining wall system that recreates the distinctive appeal of an old stone wall. Its double sided blocks build vertical retaining/freestanding walls and outdoor living features with ease. Like the original six-piece Vintage system, Vintage 6 makes the industry’s first 8′ radius without cutting. Simple, elegant and strong, Vintage 6 creates a timeless appeal that other wall systems can’t.
Applications
- Retaining Wall
- Freestanding Wall

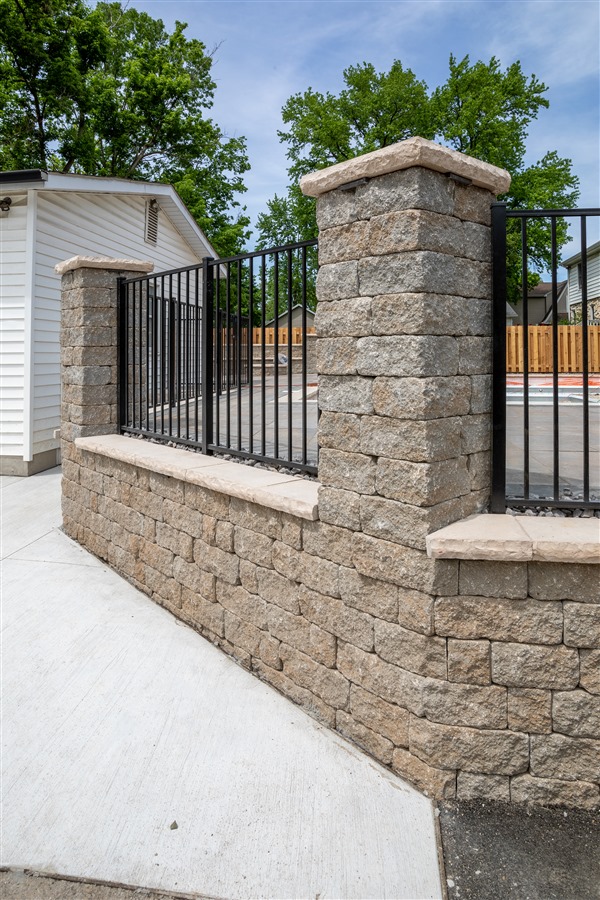

- Pillars
Find an Authorized Dealer in your area
Features and specifications:
- Three-piece, one-pallet system, tumbled/aged appearance
- Builds vertical seat/retaining walls, privacy walls and outdoor living features
- Anchor bar connection method
Three-piece sets: 137.5 lbs./set (62.5 kg.)
Small 6″ W x 10″ D x 6″ H
Medium 12″ W x 10″ D x 6″ H
Large 18″ W x 10″ D x 6″ H
Corner/Pillar Block: 48 lbs. (22 kg.)
12″ W x 9″ D x 6″ H
End Blocks: 81.5 lbs./set (37 kg.)
(S) 6″ W x 10″ D x 6″ H
(L) 12″ W x 10″ D x 6″ H
The Advantages of the Vintage 6 System…
It’s Fast…
Located on the underside of each Vintage 6 block is a 4″ x 4″ Anchor Bar that makes installation a breeze. The Anchor Bar ensures Vintage 6 builds perfectly vertical and has the highest shear resistance in the industry.
It’s Simple…
The interlocking channel on top of each Vintage 6 block provides for quick installation of retaining walls, garden walls, seat walls and pillars.
It’s Strong…
In addition to the Anchor Bar, the Vintage 6 block’s unique design not only resists the forces of tumbling, but the elements as well. Upon assembly, Vintage 6 blocks create a 4″ diameter “stone column”. When layered with grid, the gravel filled stone columns provide a multi-point interlock, resulting in a more uniform block-to-grid mechanical connection.
It’s Versatile…
Three unique, double-sided Vintage 6 blocks make it easy to recreate the timeless beauty of a naturally weathered stone wall, planter, pillar or outdoor living feature. Its patented design builds straight walls or an 8′ radius without cutting.
Unit availability, color and specifications vary by manufacturer. Contact your nearest Rockwood manufacturer or dealer for more information.

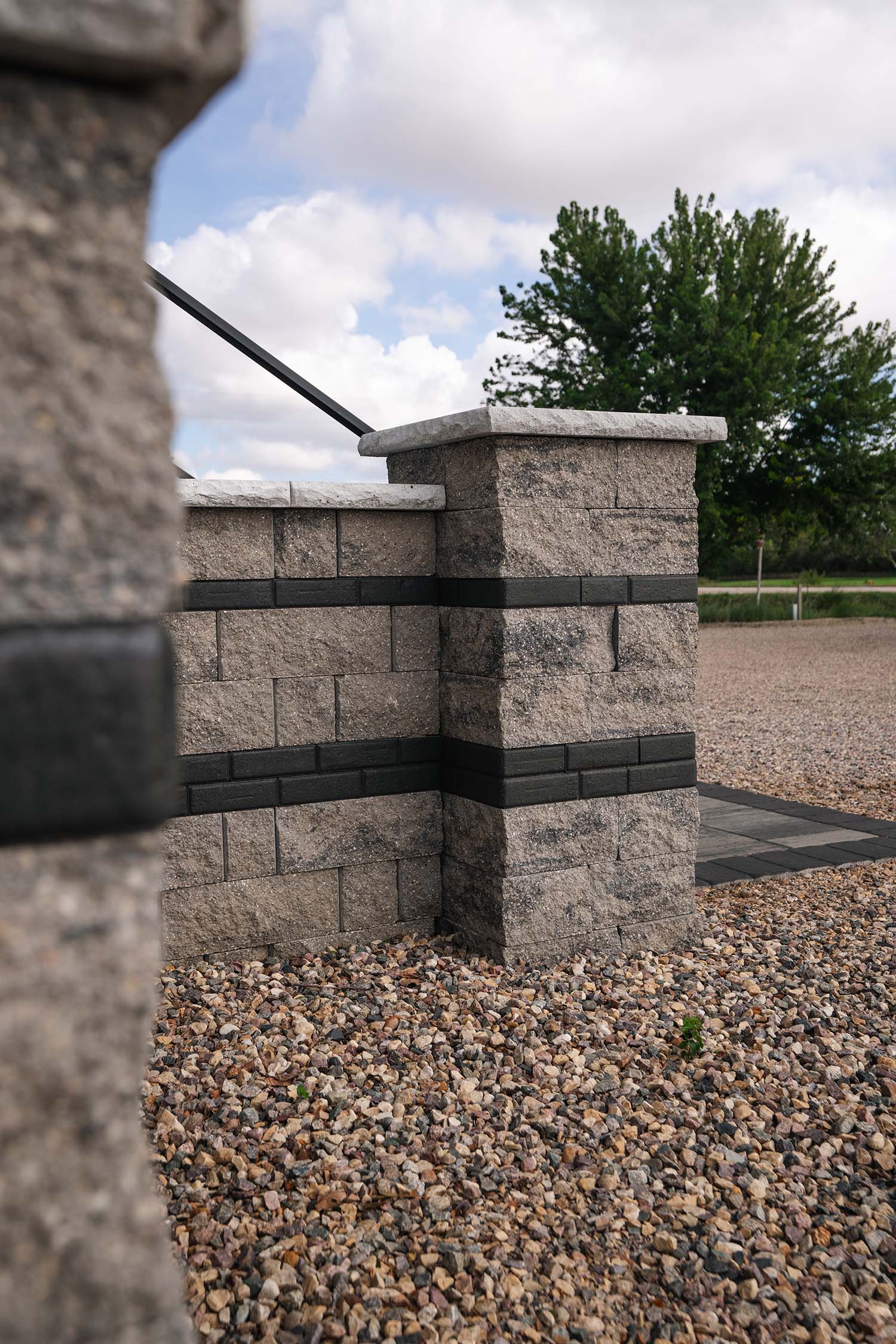

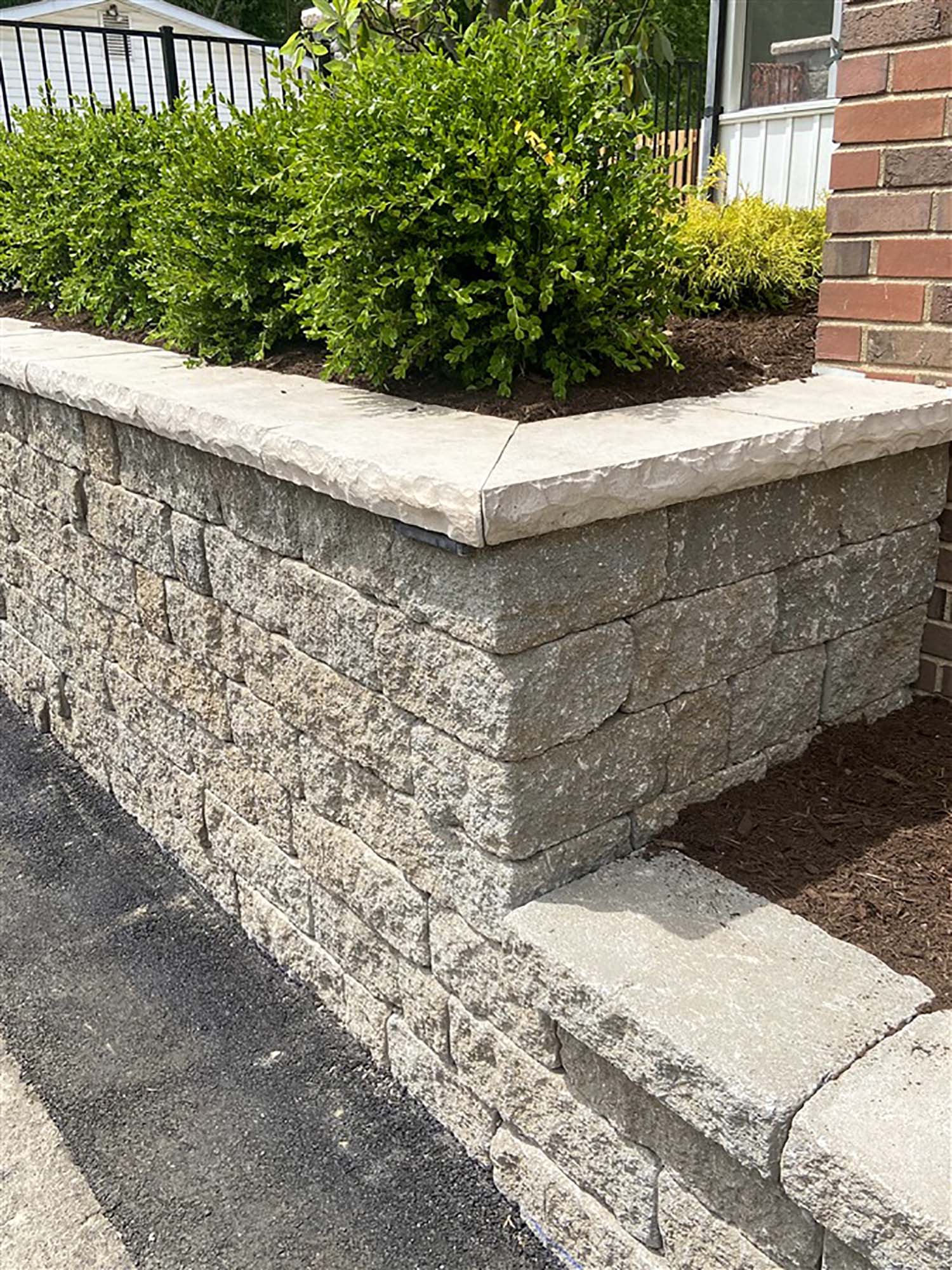

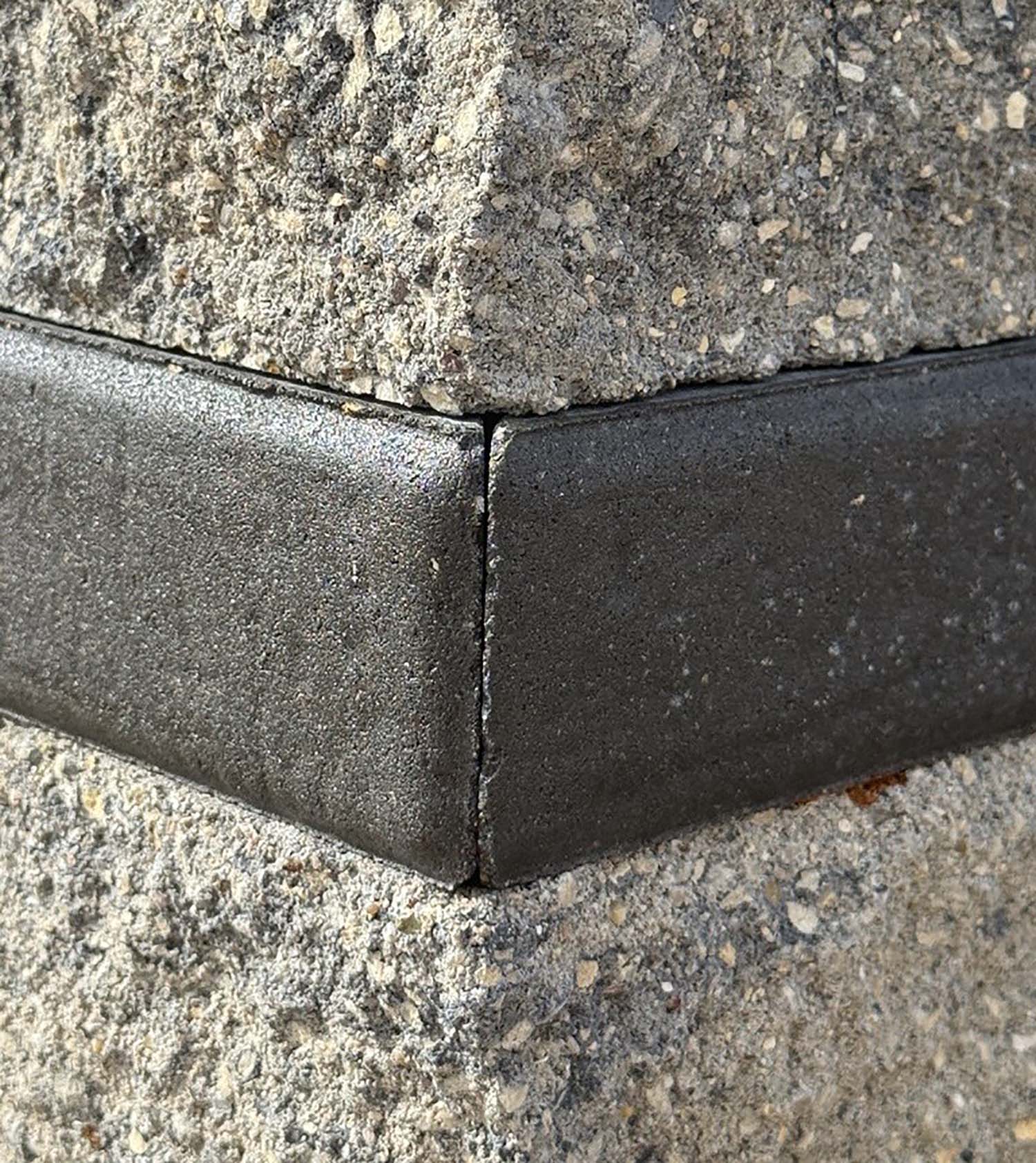

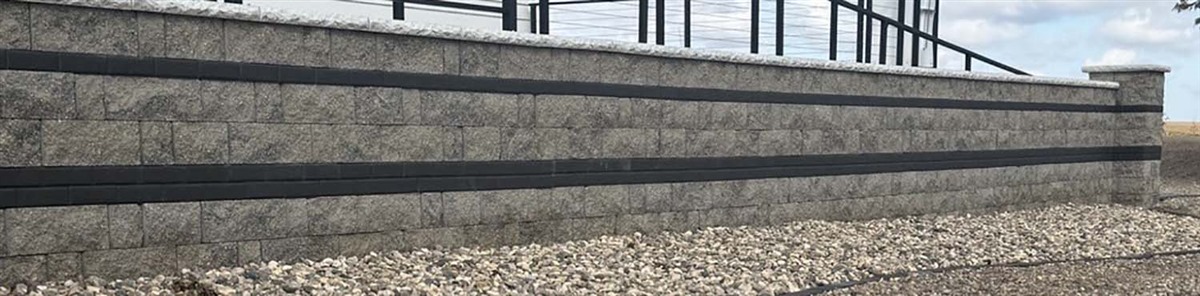

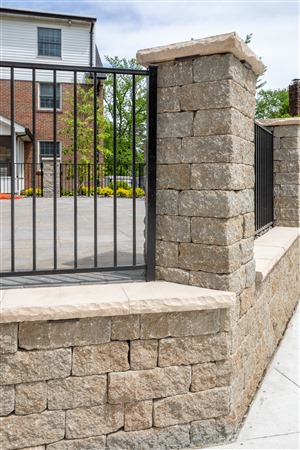

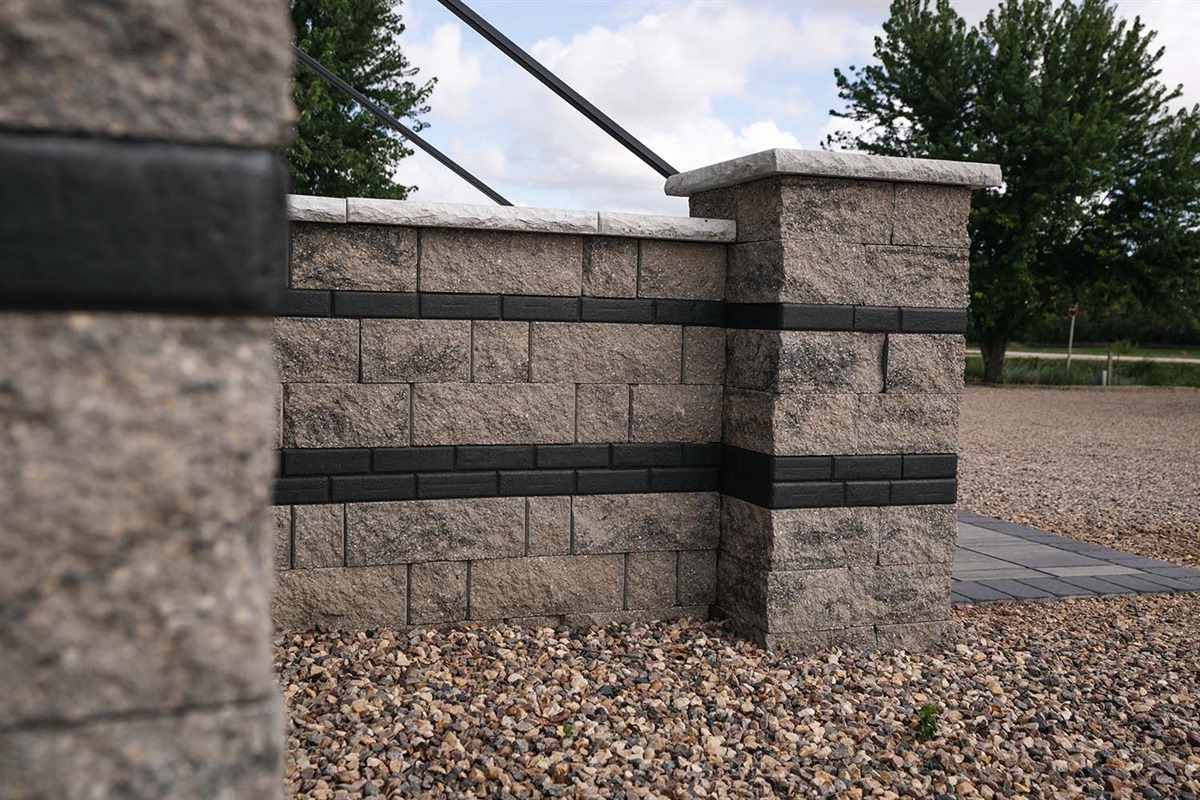

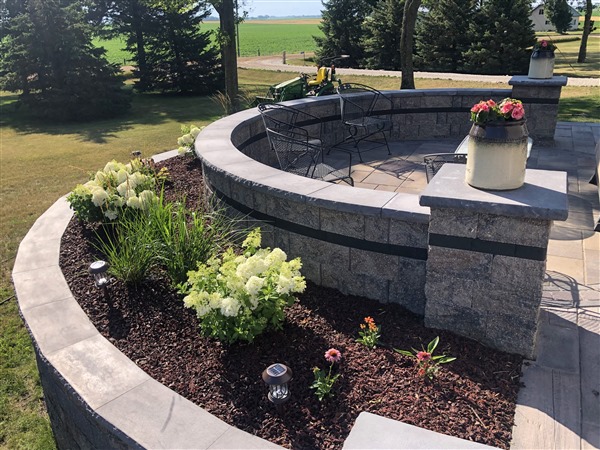

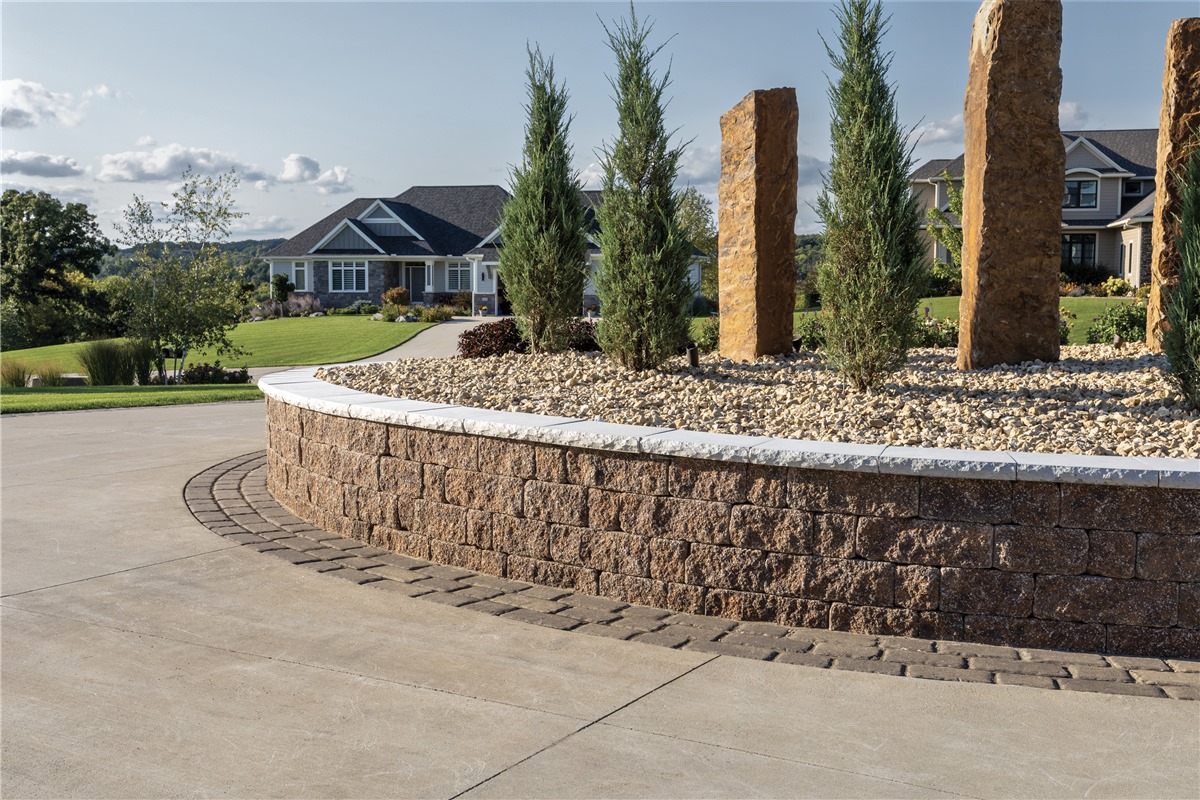

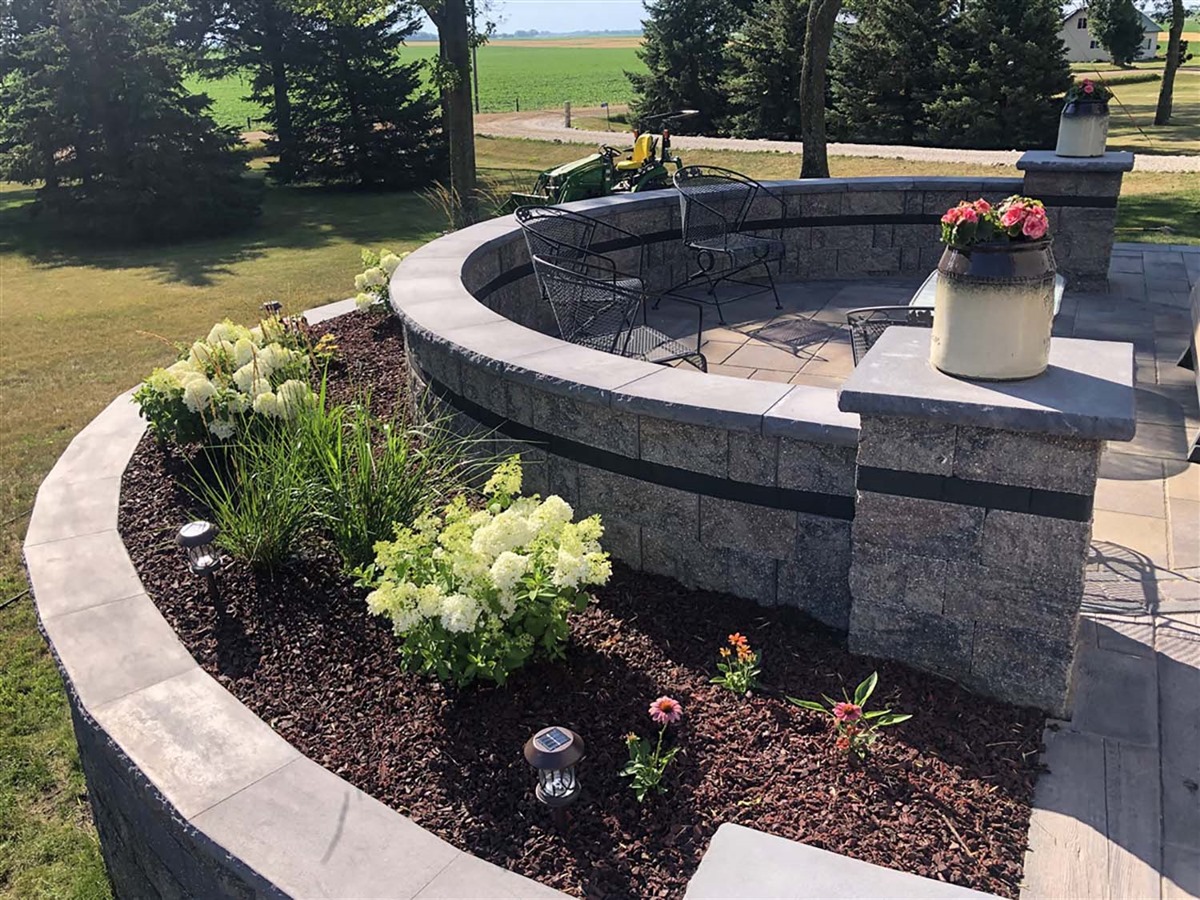

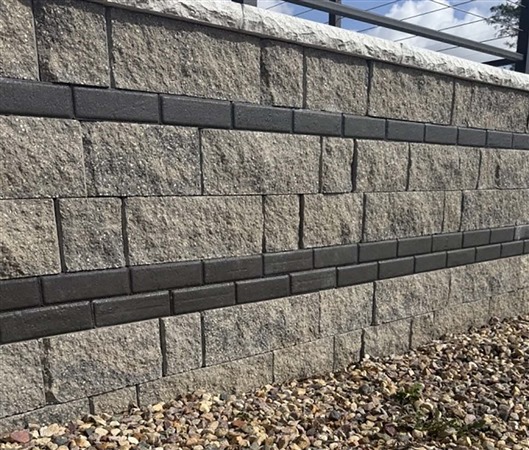

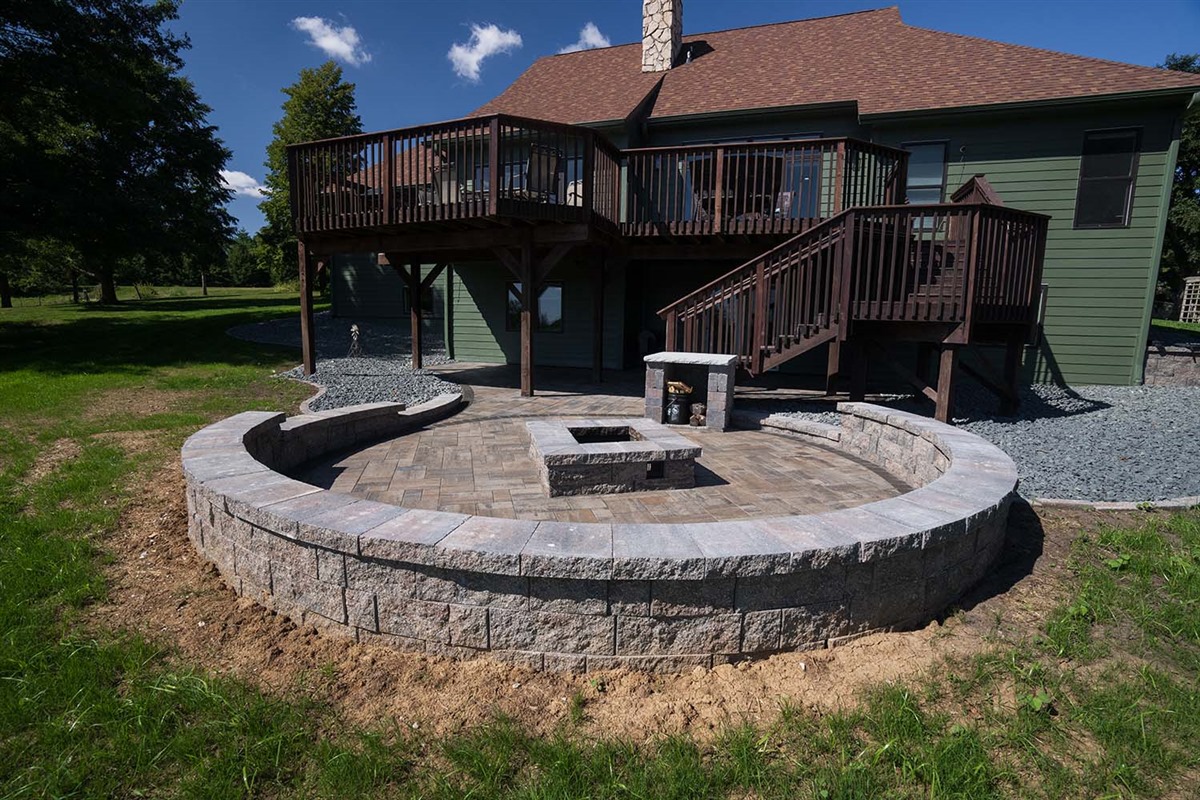

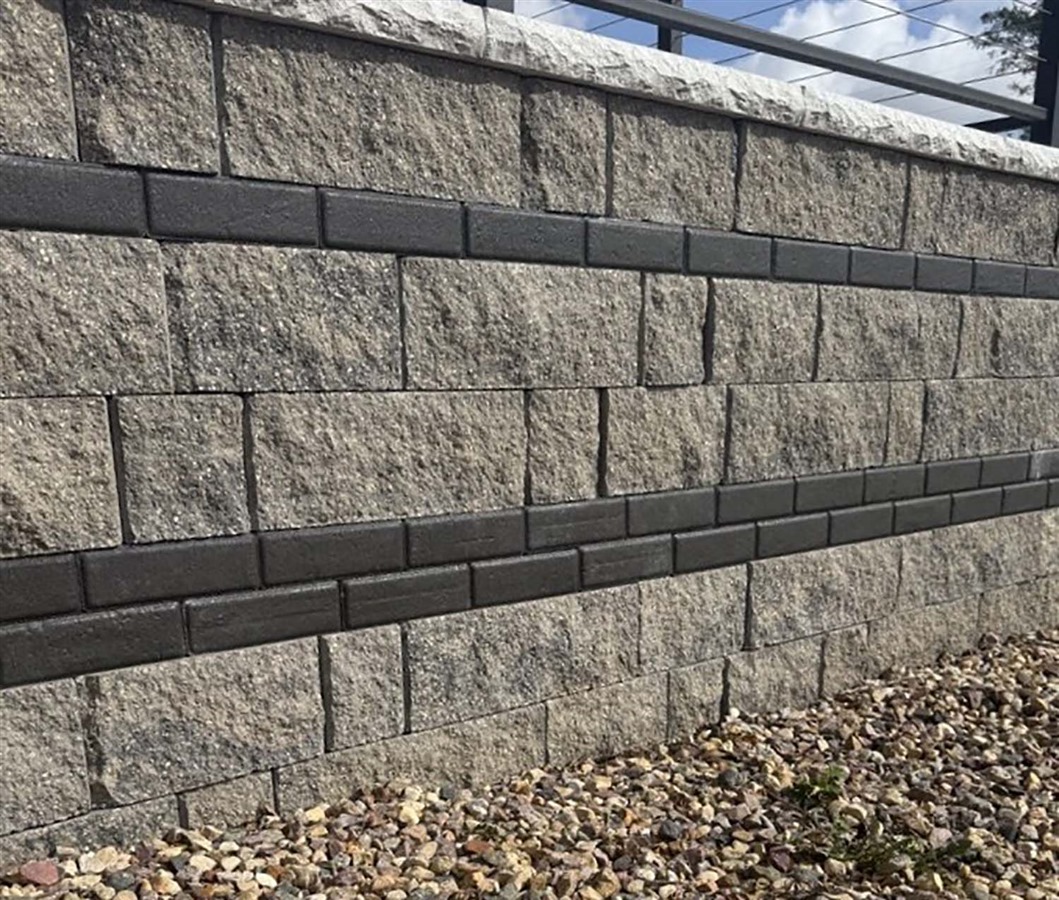

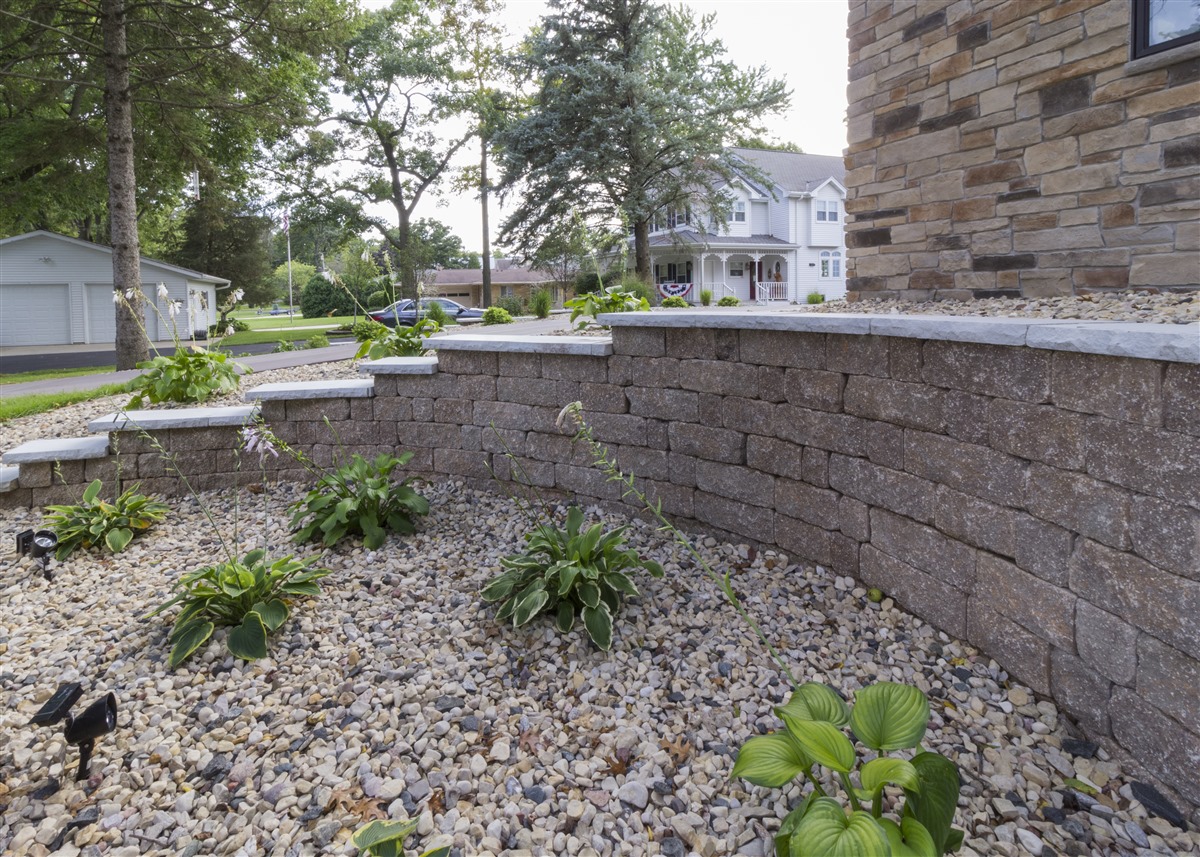

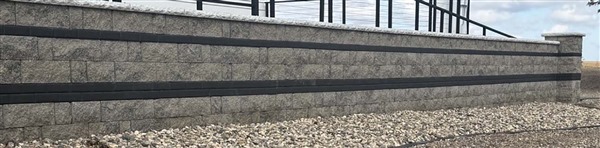

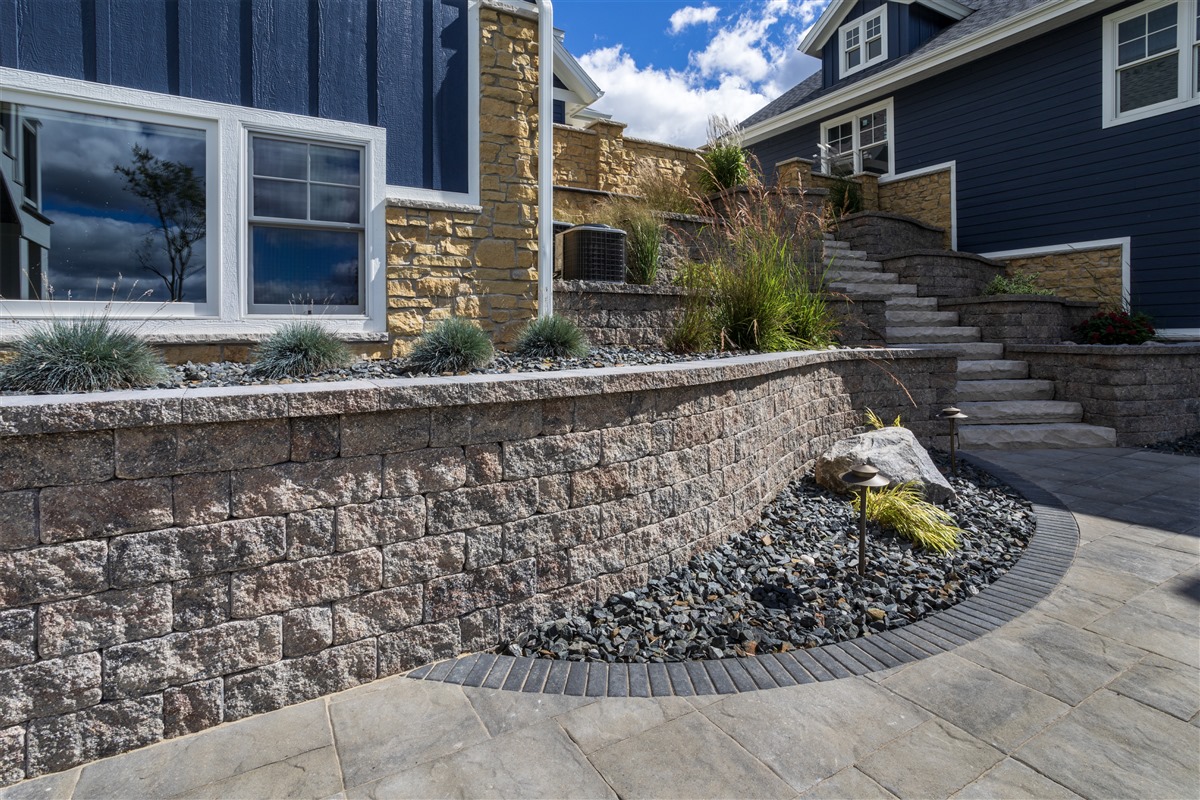

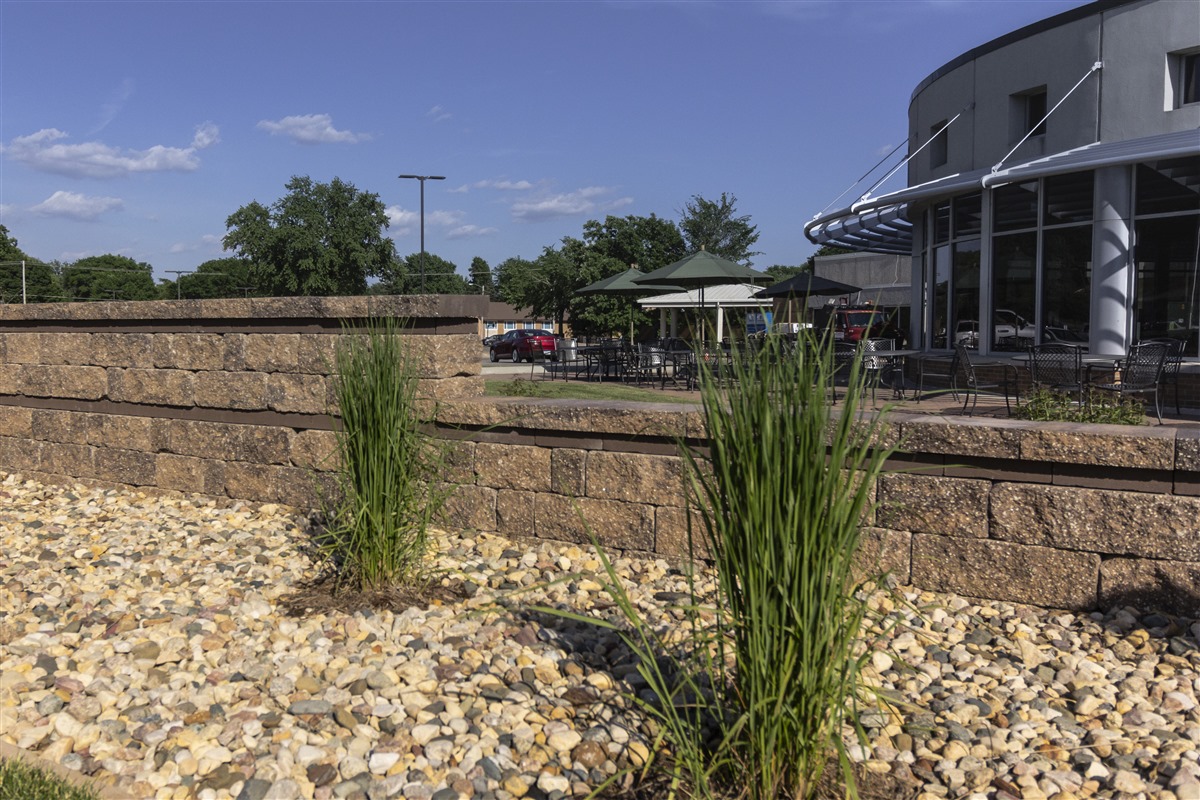

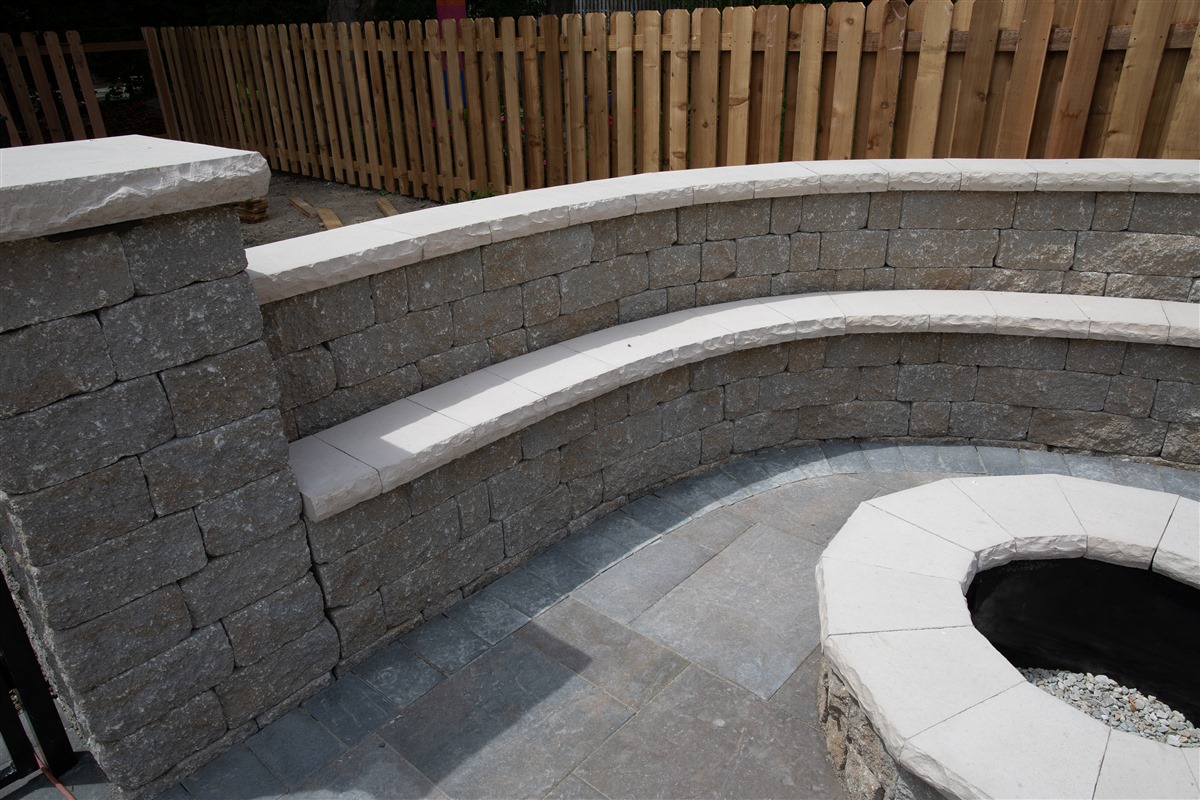

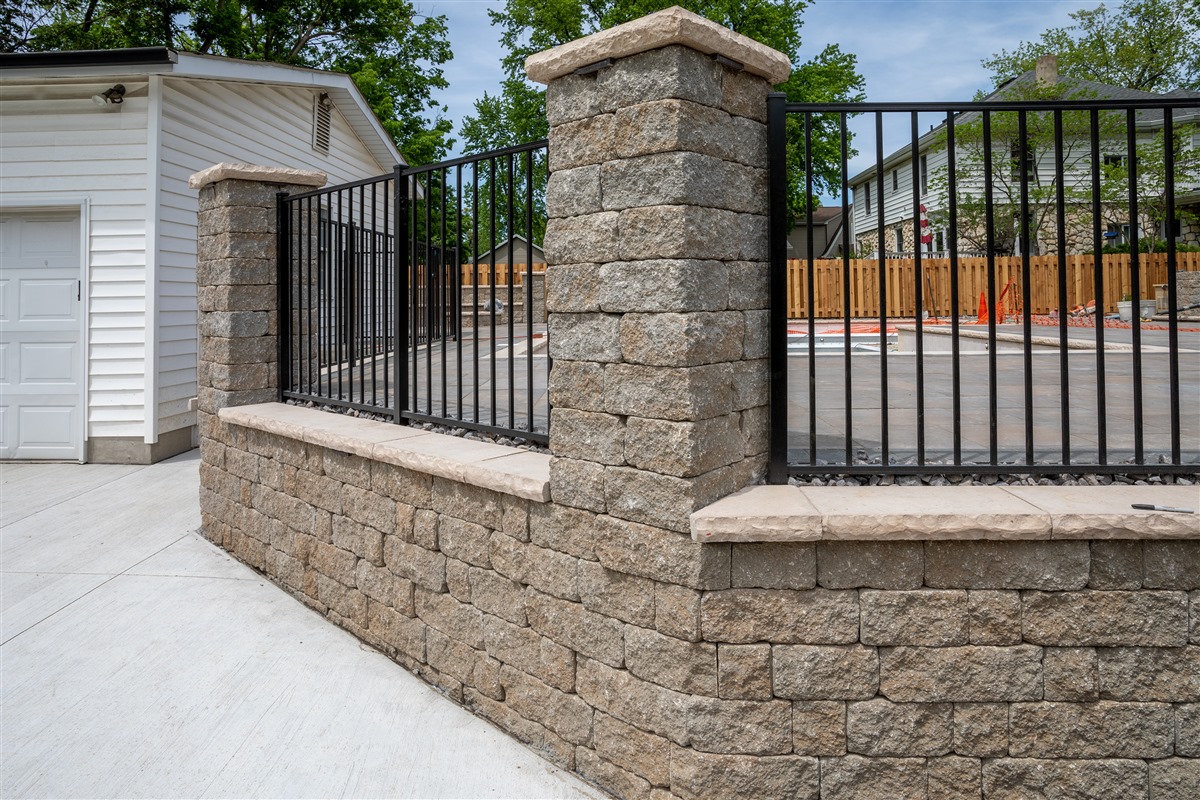

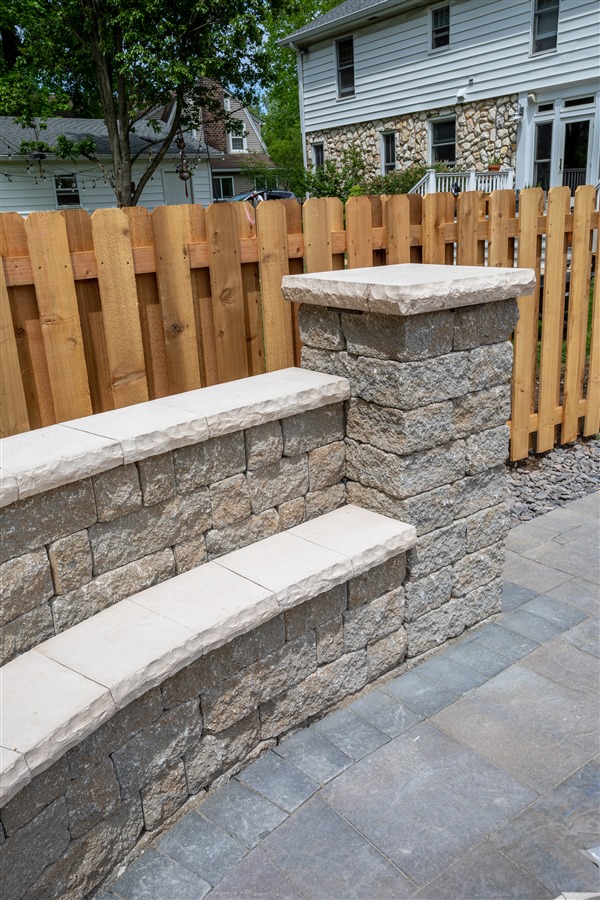

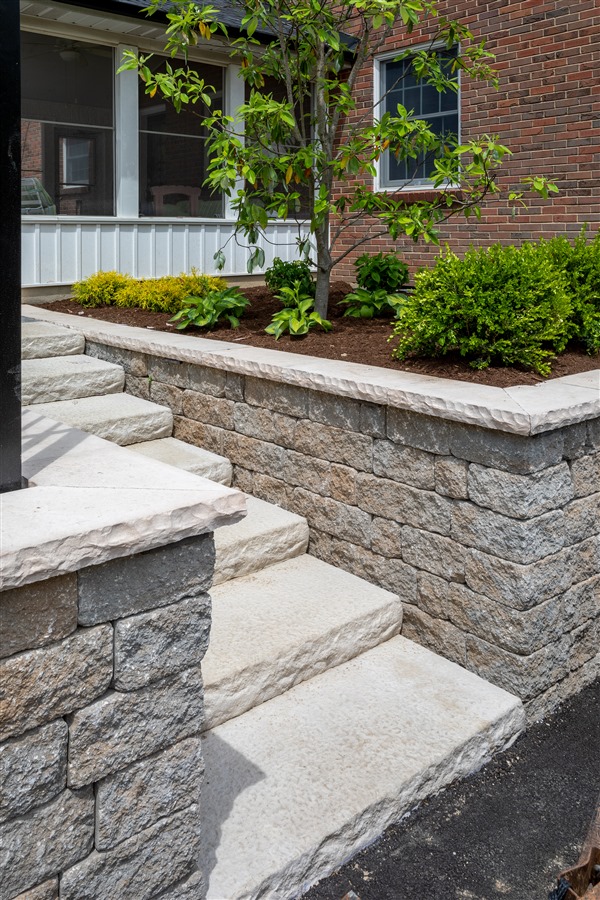

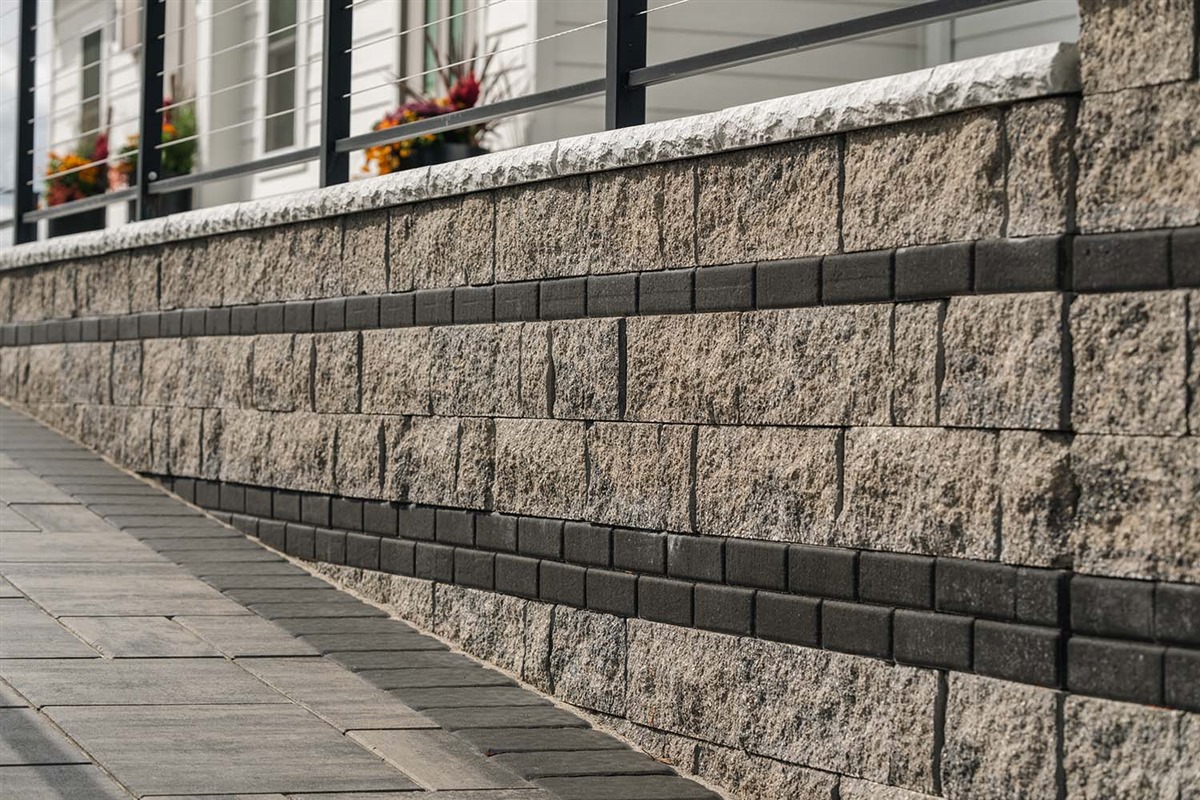

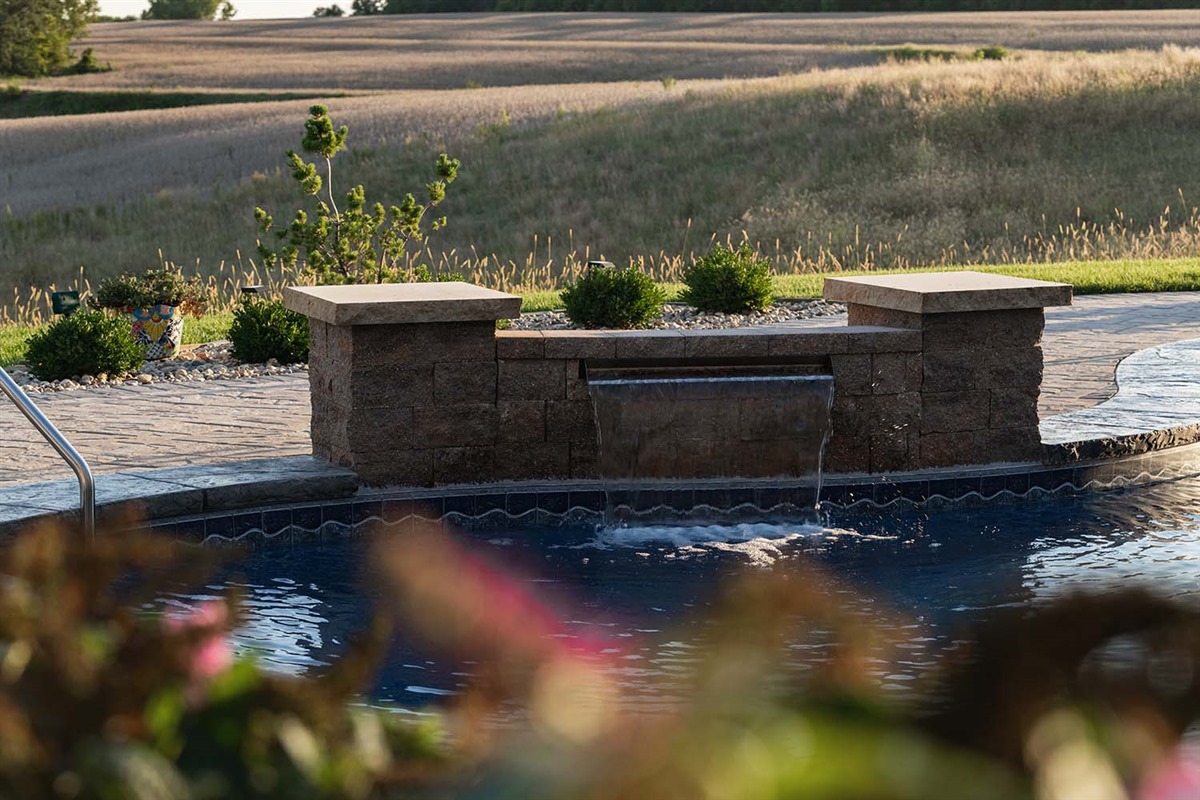

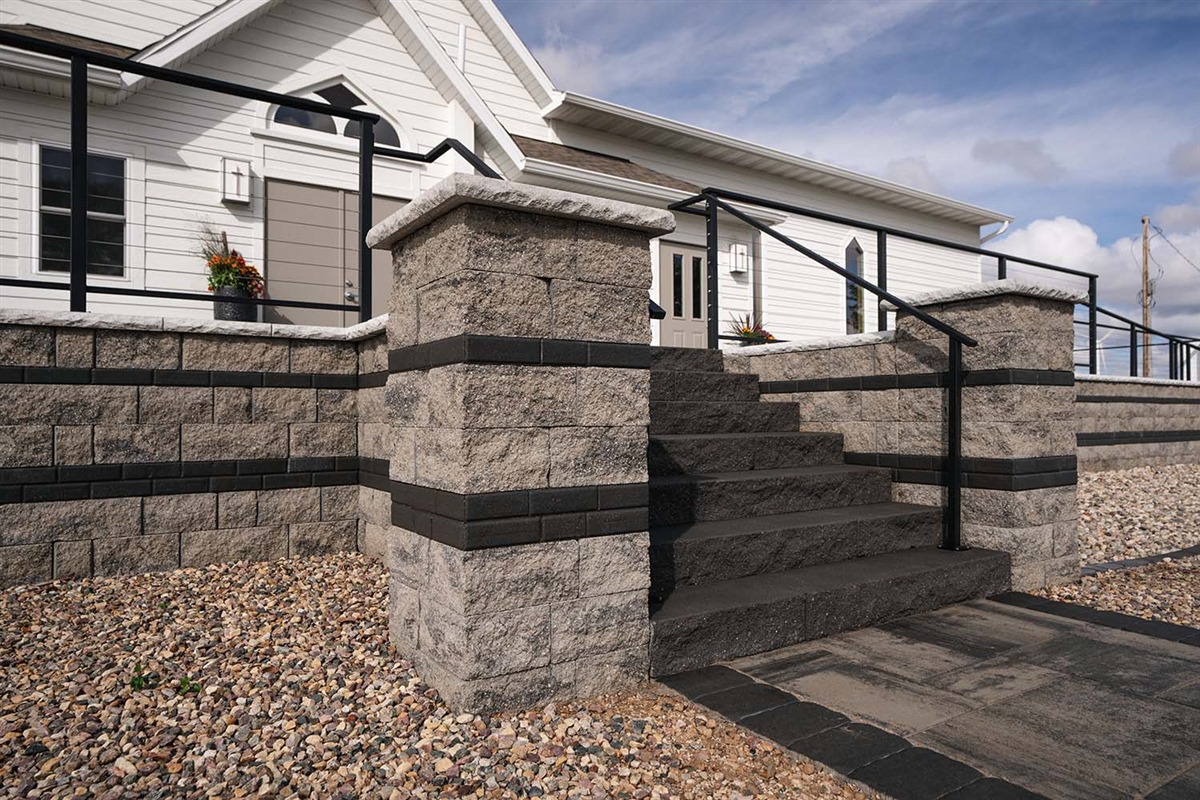

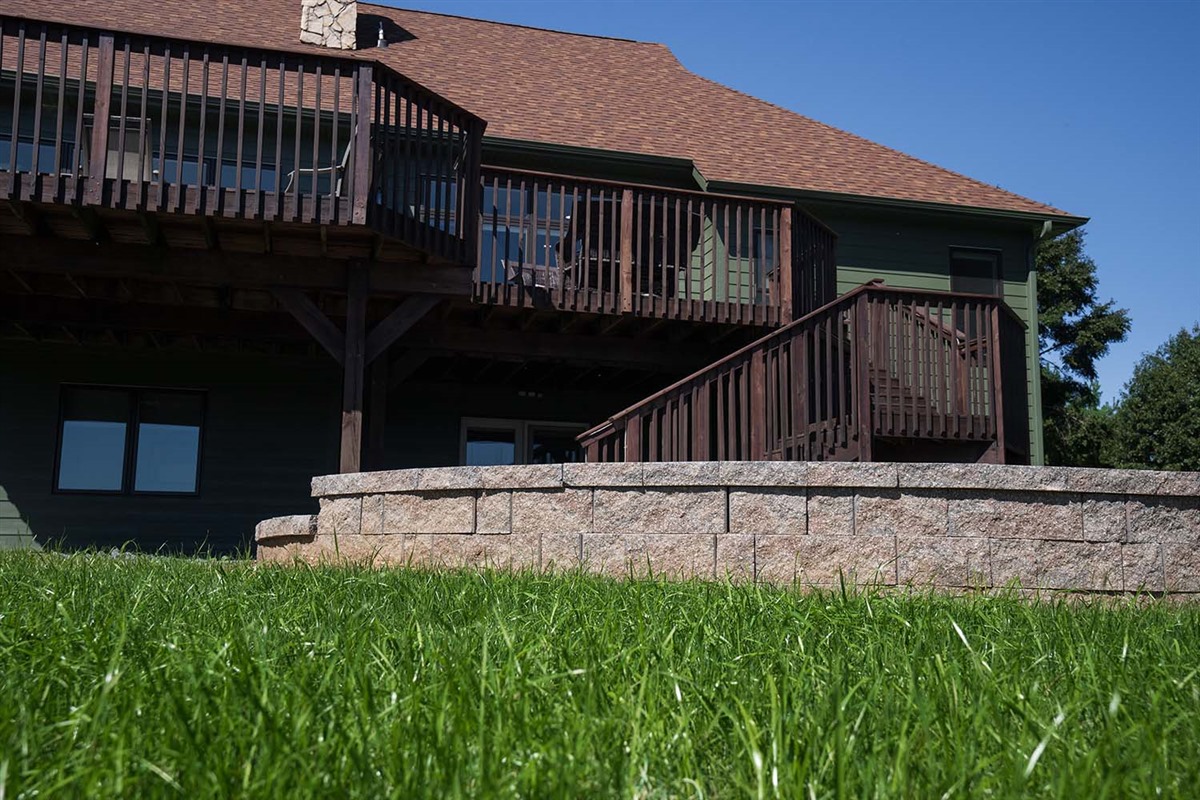

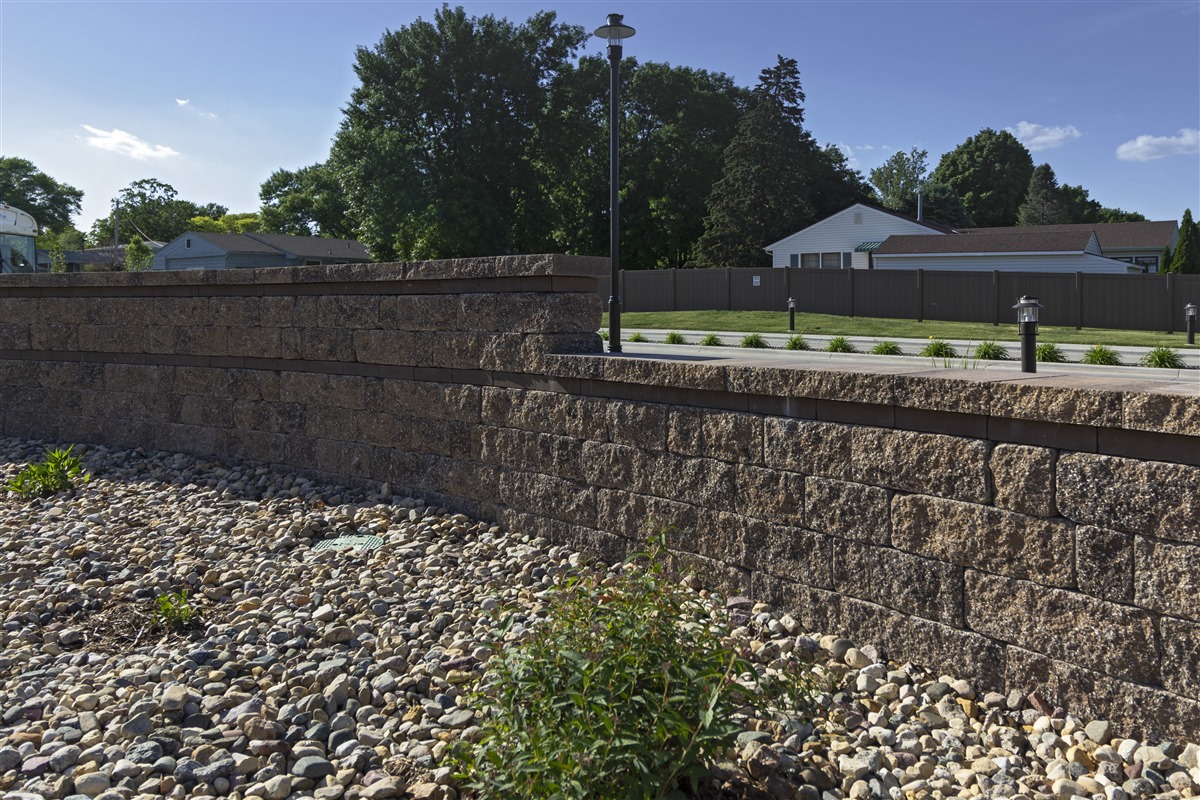

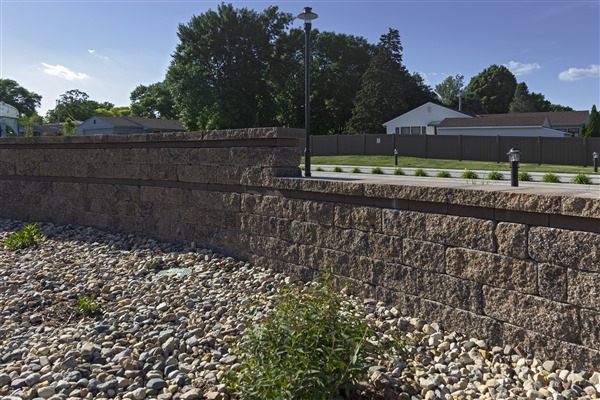

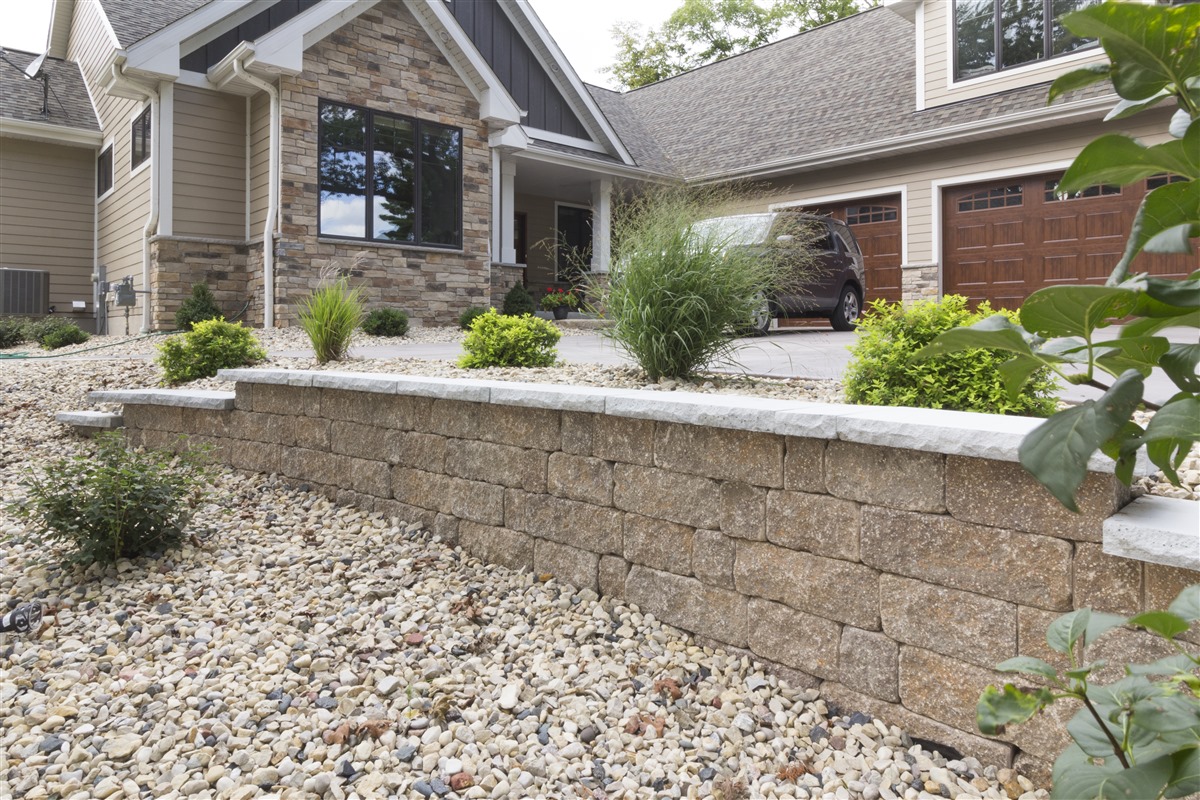

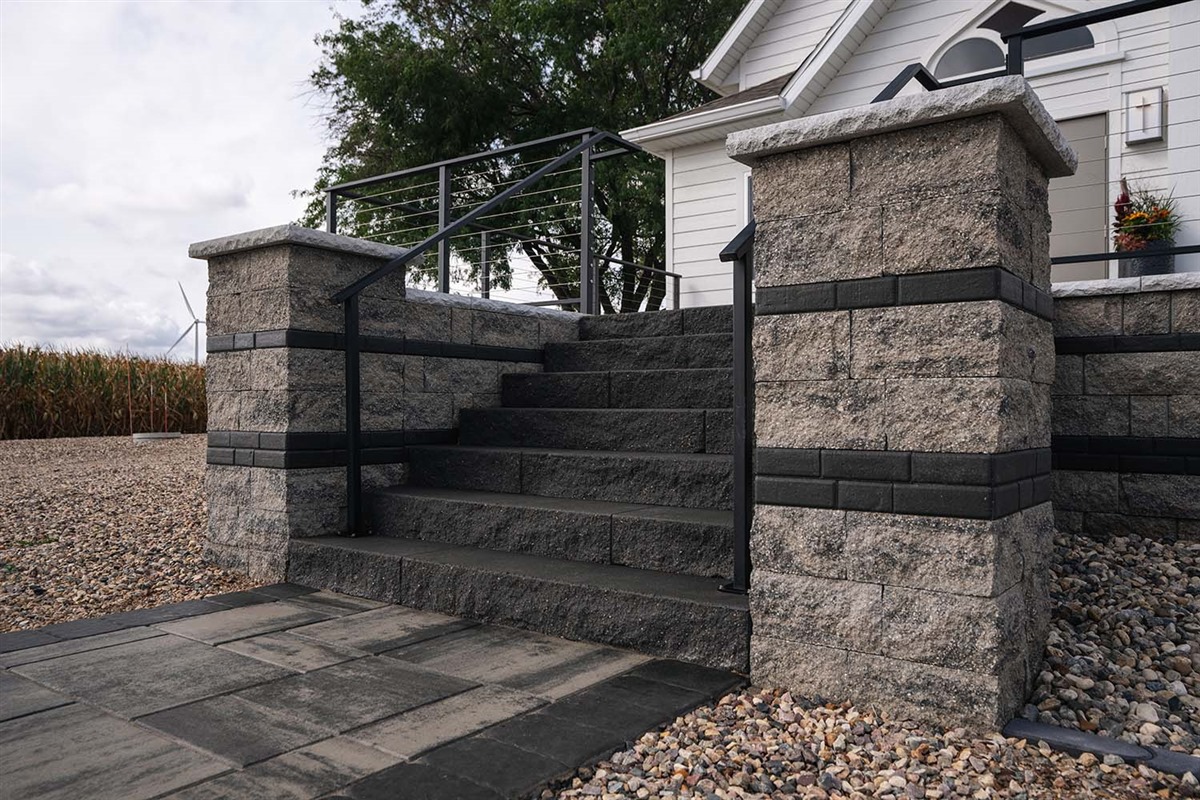

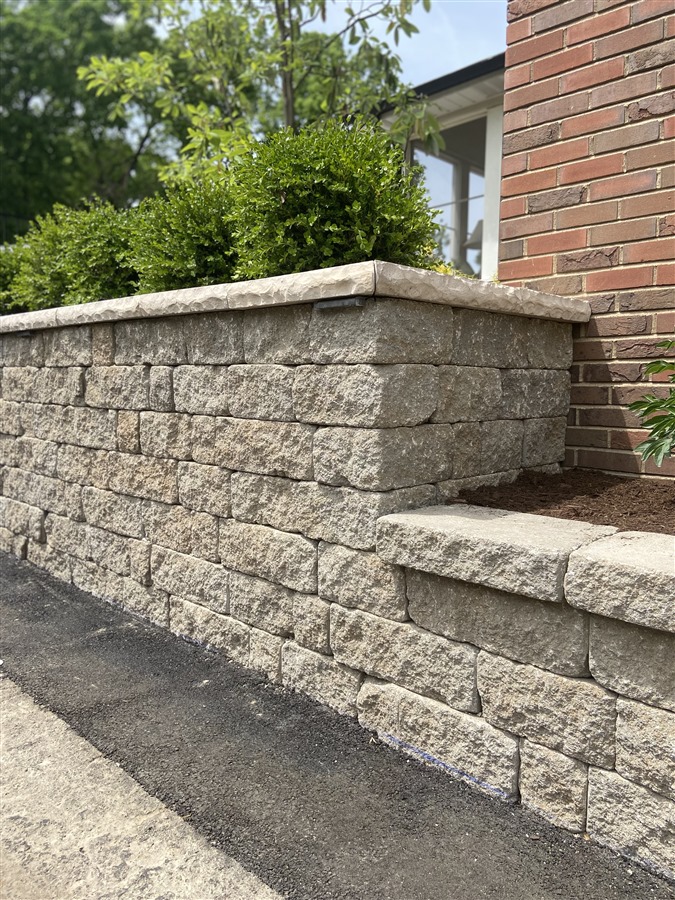

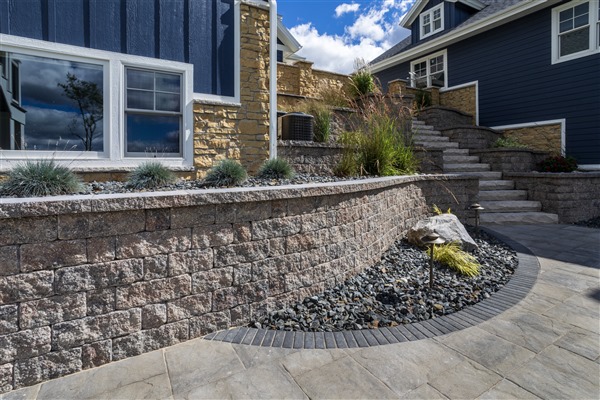

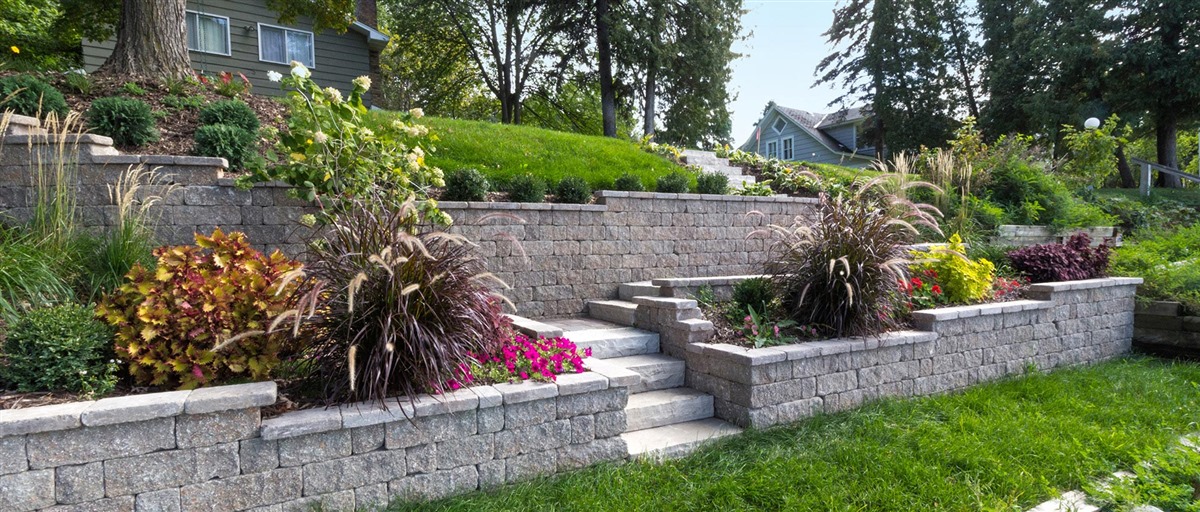

Gallery
Our Technology
Tumble Tech
Tumble Tech™ from RCP is a finishing process that gently distresses each block to create the authentic character of aged stone. By combining motion, impact, and abrasion, this technique enhances surface texture and edge definition, resulting in a rich, timeworn aesthetic. The result is a naturally weathered look that adds warmth and old-world charm to any outdoor space.
Versatile
Purposefully designed for versatility, this block is an ideal solution for not only retaining walls but also seat walls, garden walls, and pillars. Its modular shape, two-sided finished surfaces, and consistent dimensions allow for creative configurations, cohesive design and seamless transitions between structural and decorative elements.
Technical Resources
| Name | Size | Face Area | Weight |
|---|---|---|---|
| Small | 6 x 10 x 6″ H | 0.25 sq. ft. | 137.5 lbs. |
| Medium | 12 x 10 x 6″ H | 0.50 sq. ft. | |
| Large | 18 x 10 x 6″ H | 0.75 sq. ft. | |
| Small End Block | 6 x 10 x 6″ H | 0.42 sq. ft. | 81.50 lbs. |
| Large End Block | 12 x 10 x 6″ H | 0.83 sq. ft. | |
| Corner / Pillar Block | 12 x 9 x 6″ H | 0.50 sq. ft. | 48 lbs. |
Blocks available by pallet, end pieces available by the set or pallet, corners available by pallet.
