Palisade™ Wall
Palisade Wall is a first-of-its-kind segmental retaining wall system that sets a new standard in the market. Its premium facemix finish enhances rich, vibrant color patterns, making it equally suited for modern, contemporary, and traditional landscape designs. Each unit measures 40″ long, 8″ high, and 12″ deep and weighs approximately 330 lbs. The system also features facemix corner units, allowing for seamless transitions and cohesive integration into a wide range of landscape layouts and specialty features.

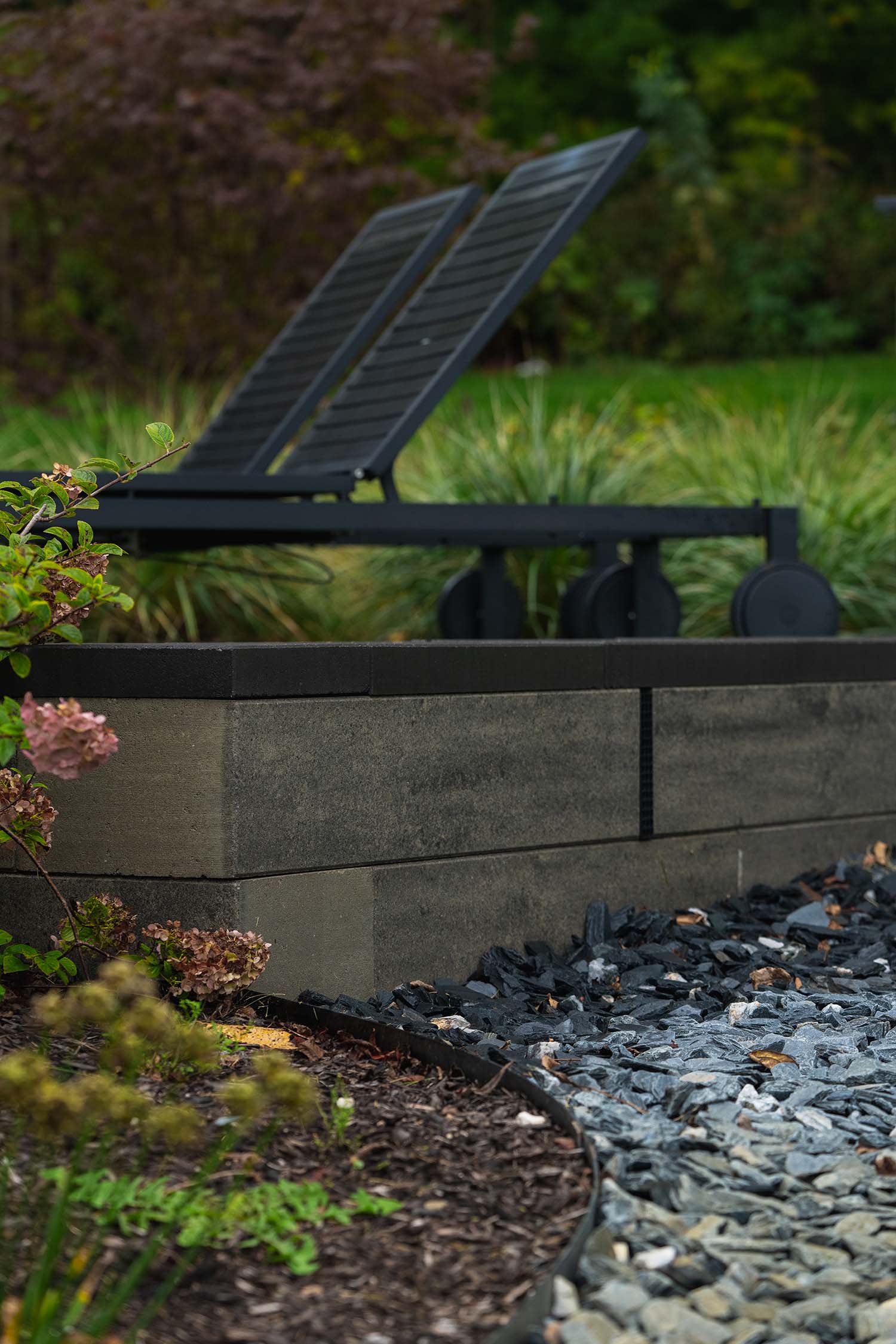

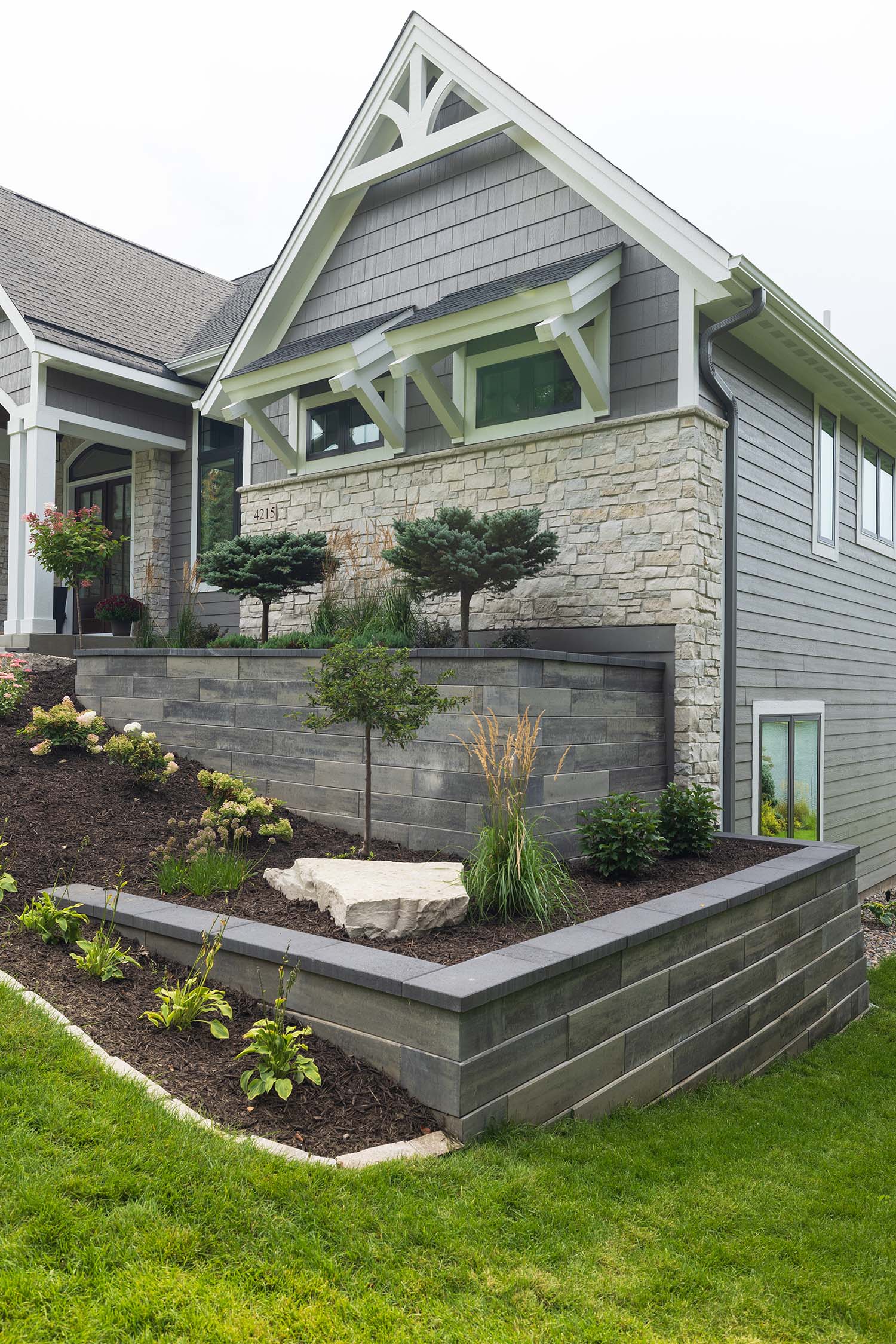

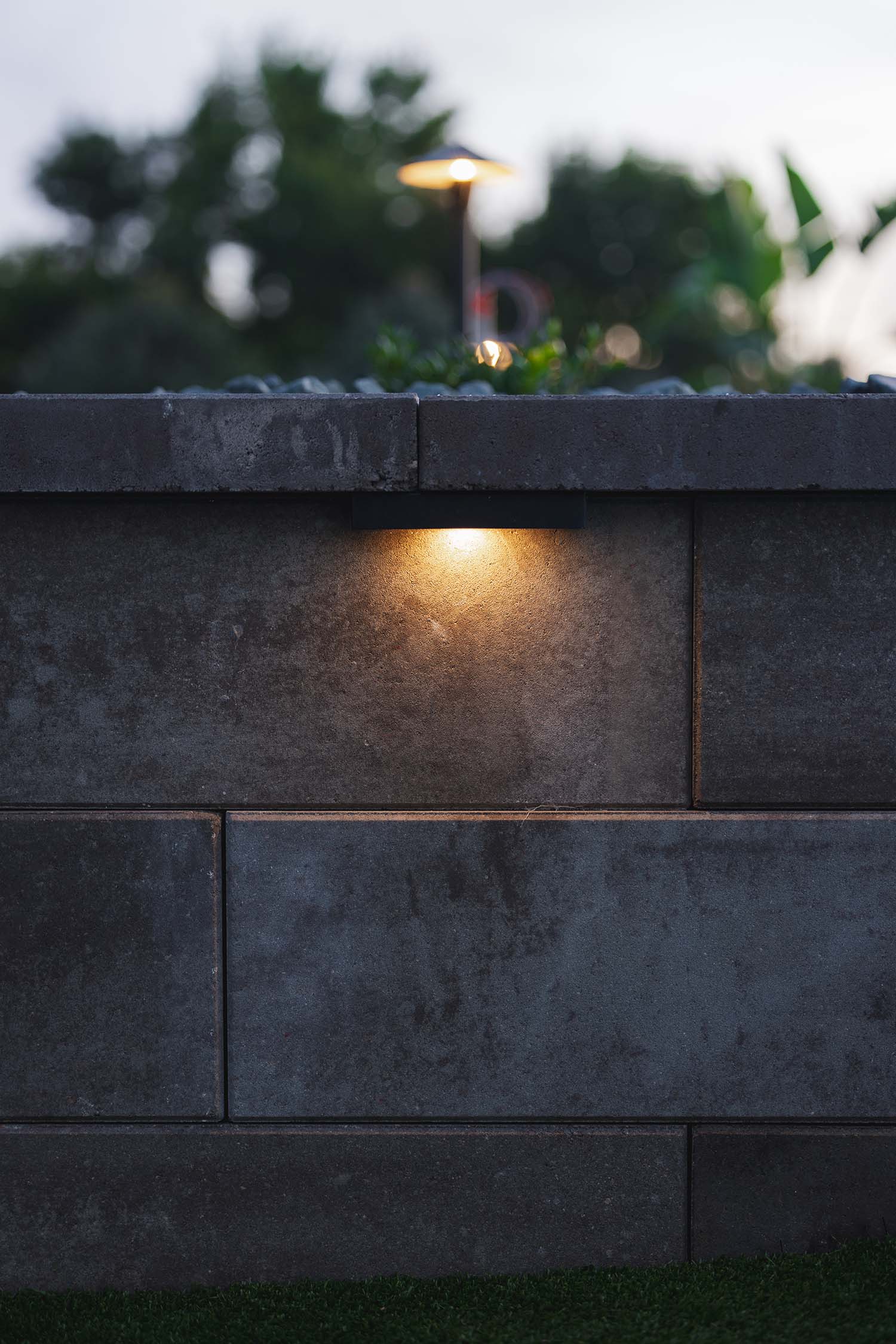

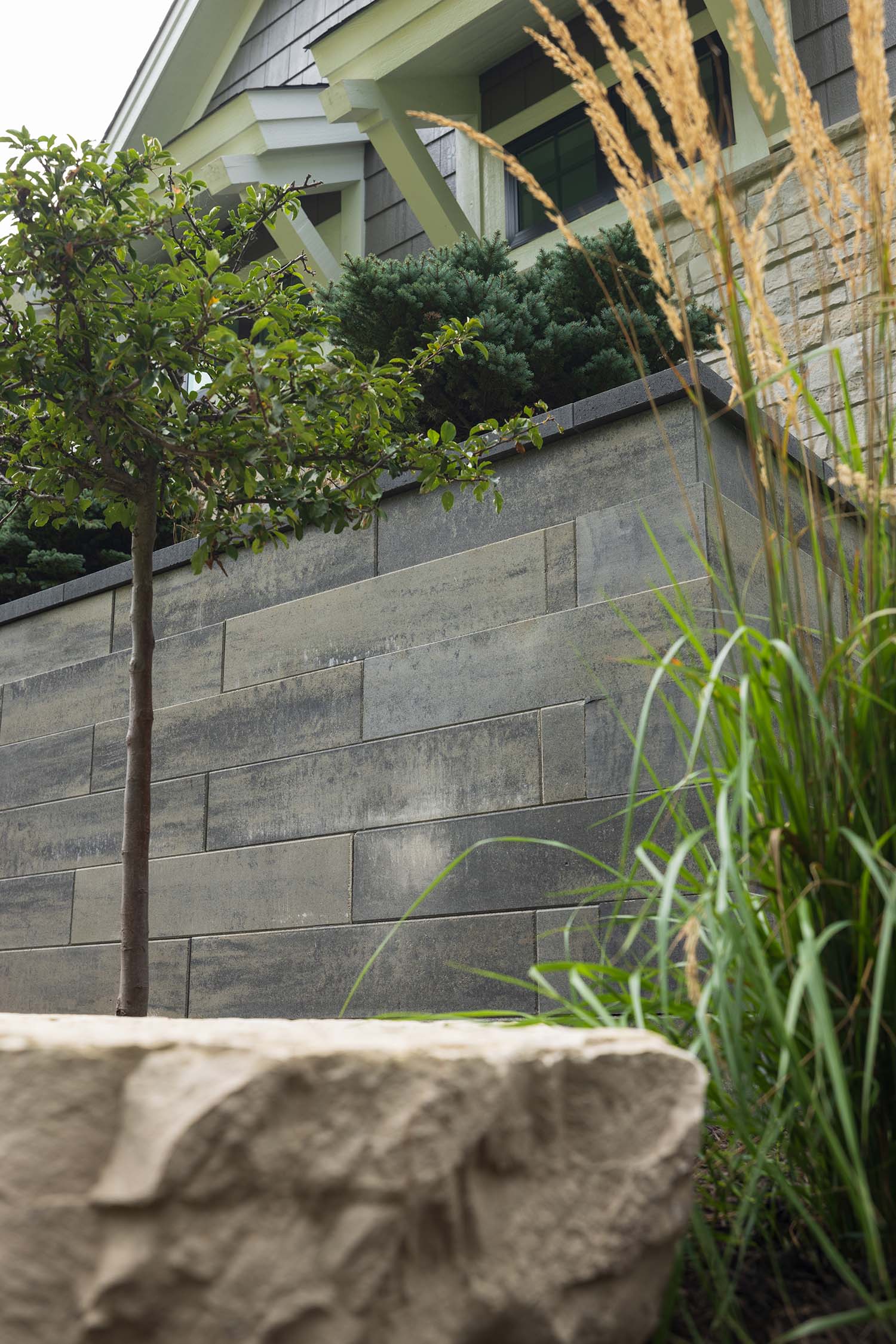

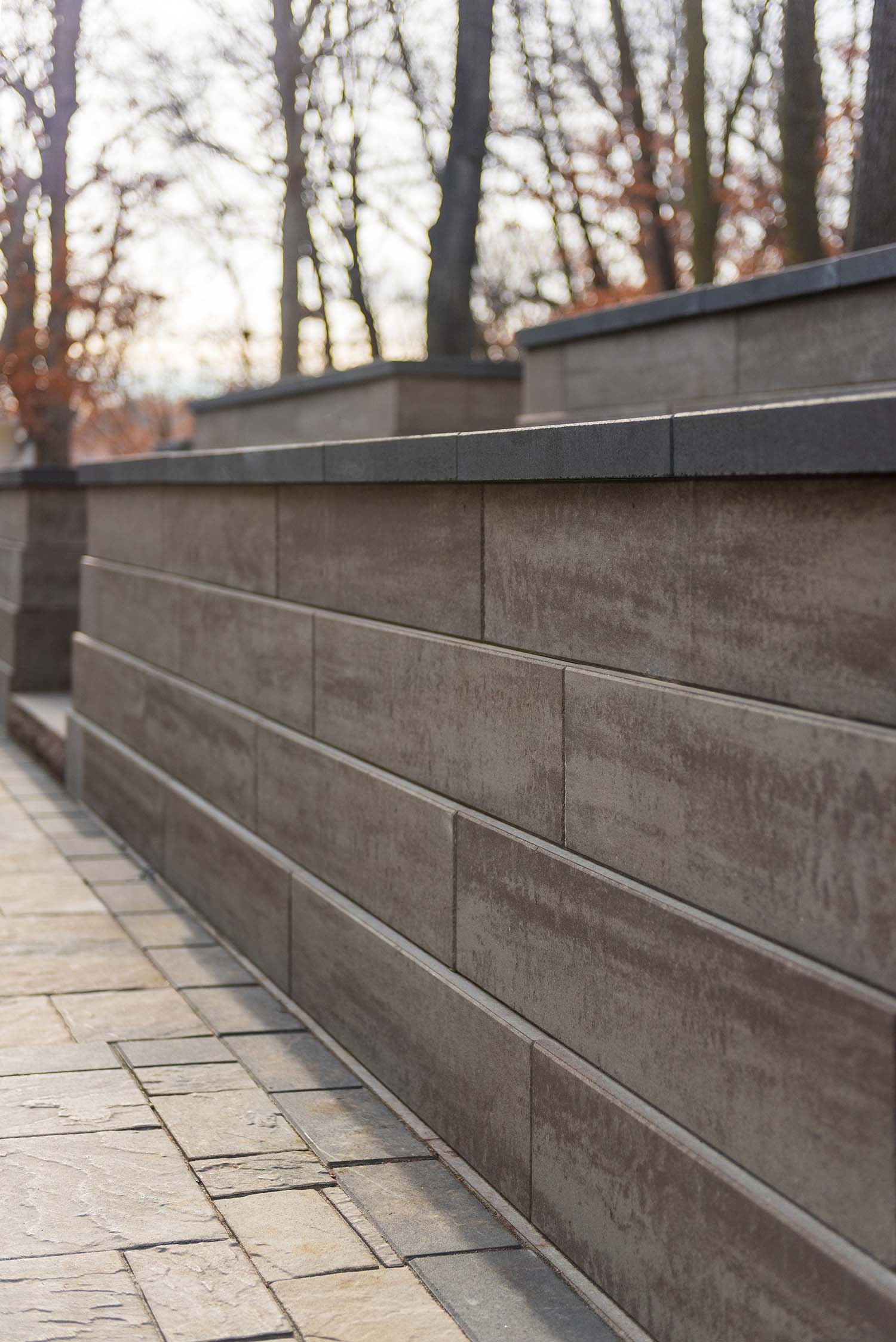

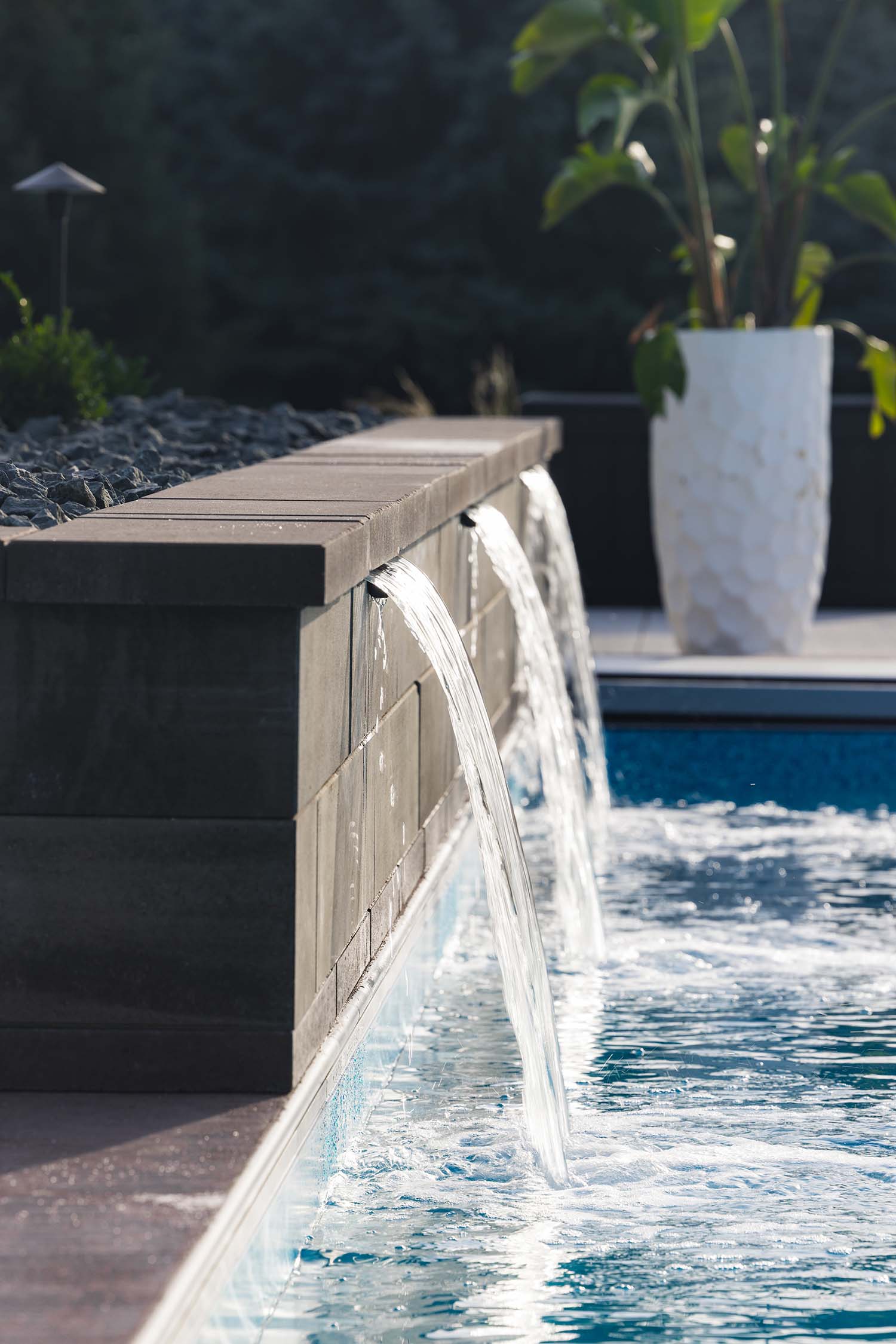

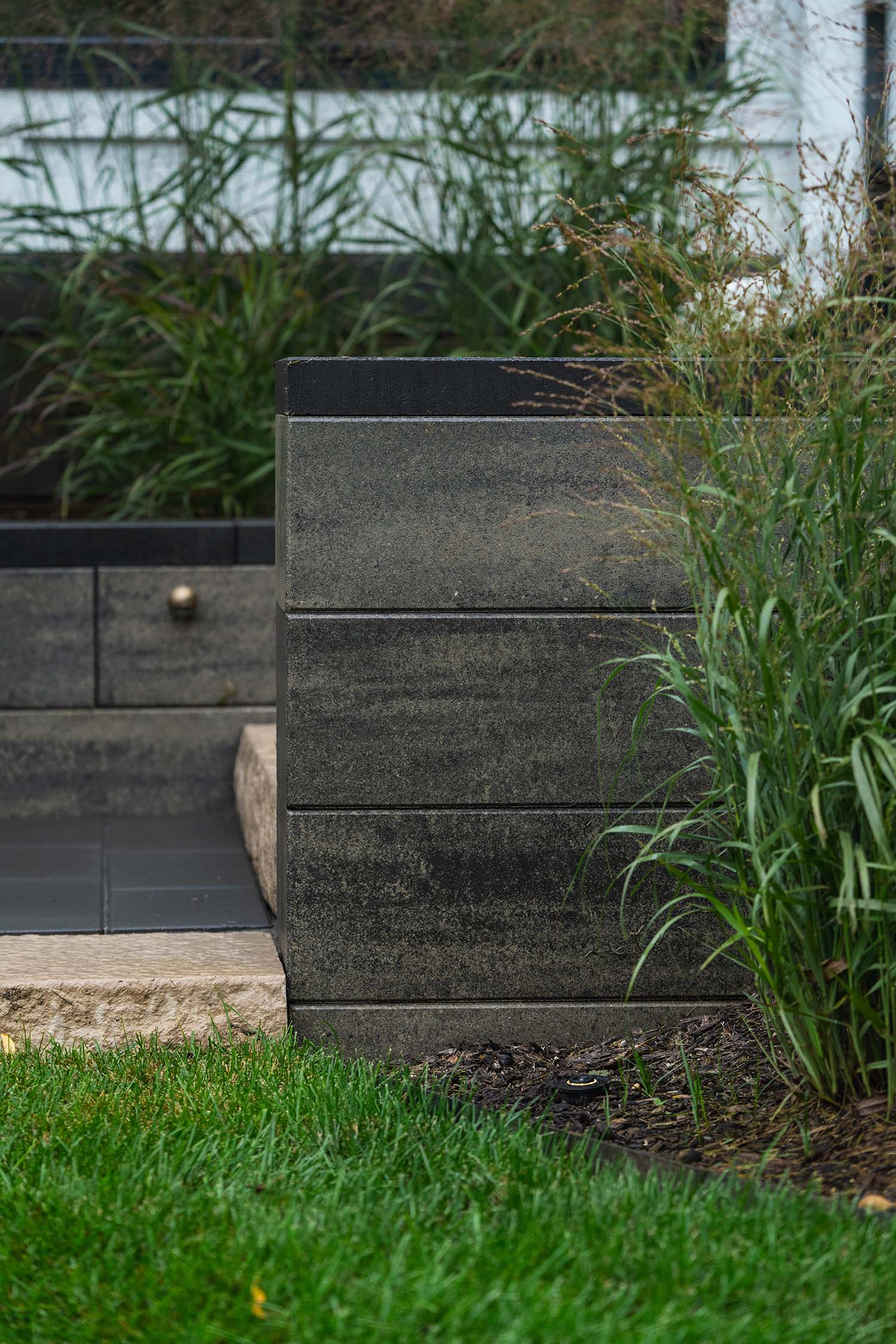

Click Here to View Palisade Wall Project Gallery
Applications
- Retaining Wall
Find an Authorized Dealer in your area
Ordering and Installation
- Smooth surfaces, 90° corners, chamfered face
- Builds linear gravity walls with 0.75″ setback (5.3°), adjustable to vertical
- Chroma Color facemix technology on face
- Corner/End units have Chroma Color on face and sides
- Lifting device required
- Cap with Contemporary Wall Cap
- For quick and easy Palisade Wall installation, use base block (gray)
- Available by pallet
- Dimensions shown are nominal
Our Technology
Chroma Color
Experience the charm of vibrant and consistent color with our Chroma series. Implemented during the final production stages, the Chroma Coloring System imparts a saturated color layer on the surface of each unit, enhancing both aesthetic appeal and durability
Technical Resources
| Blocks | Dimensions | Face Area | Weight |
|---|---|---|---|
| Standard | 40 x 12 x 8″ H | 2.22 sq. ft. | 330 lbs. |
| Corner/End | 40 x 12 x 8″ H | 2.22 sq. ft. | 330 lbs. |
| Base Block | 15 x 12 x 4″ H | 0.44 sq. ft | 47 lbs. |
SRW Best Practices
Palisade Cut Sheet
