Rockwood Premier™ 9D Wall

Premier 9D represents a new generation of retaining walls based on proven performance and superior efficiency of the Premier Wall Series. At 47 lbs., Premier 9D offers the lightest weight retaining wall unit per square foot in the industry, and is one of the most cost effective systems available.

Applications

Retaining Wall

Find an Authorized Dealer in your area

Features and specifications:

Pound for pound, Premier 9D is unlike any other SRW block.

Premier 9D’s revolutionary block design makes it the most efficient 1 sq. ft. SRW block ever. At just 47 lbs., it beats all other block systems for freight efficiencies and ease of construction.

Designed with Max Core™ Technology for connection strength and resistance to shear from continuous stone columns
Lightweight for ease of handling, reducing fatigue
Increased freight efficiencies
Can be built to amazing heights with proper engineering
Straight-split face or Colonial face options

Dimensions: 18″ W x 9″ D x 8″ H
Weight: 47 lbs.
Area: 1.0 sq. ft.
Setback: 1.0″ (7°)

Manufactured in accordance with ASTM C1372. Unit availability, color and specifications vary by manufacturer. Contact your nearest Rockwood manufacturer or dealer for more information.

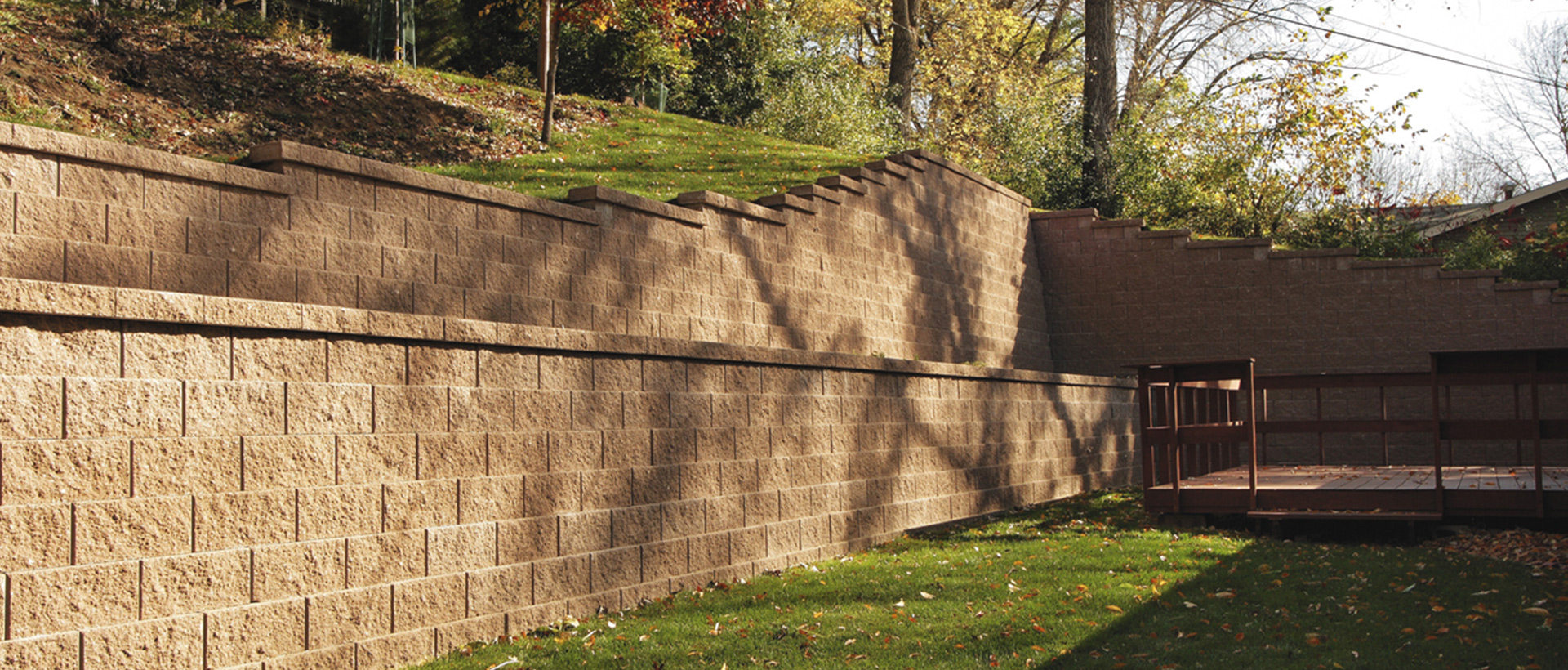

Gallery

Our Technology

Shear Resistance

Retaining wall units are engineered with open cores in the center of the block that are filled with drainage aggregate during installation. This design forms continuous stone columns the entire height of the wall, significantly increasing block to block shear resistance and enhancing the wall’s stability during and after construction.

Max Core Technology

Engineered with Max Core ™ Technology, this retaining wall block delivers unmatched strength and performance while weighing nearly half as much as traditional segmental retaining wall units. Its advanced design meets and exceeds industry standards. Max Core ™ Technology makes blocks easier to handle without compromising structural integrity – a smarter, more efficient solution on the jobsite.
